R Functions for Z-Residuals

What is Z-Residual (NRSP Residual)?

Let t_i be a possibly right-censored observation, \delta_i be the indicator for being uncensored, and \hat{S}_i(\cdot) be an estimated survival function of original uncensored T^*_i given covariate x_i and parameters. The randomized survival probability (RSP) for t_i is defined as: \begin{equation} S_i^{R}(t_i, \delta_i, U_i) = \left\{ \begin{array}{rl} \hat S_{i}(t_i), & \text{if $t_i$ is uncensored, i.e., $\delta_{i}=1$,}\\ U_i\, \hat S_{i}(t_i), & \text{if $t_i$ is censored, i.e., $\delta_i=0$.} \end{array} \right. \end{equation} where U_i is a uniform random number on (0, 1). Li, L., Wu, T., & Feng, C. (2021) shows that RSPs are uniformly distributed on (0,1) under the true model for T^*_i. Therefore, they can be transformed into residuals with any desired distribution. Z-residuals are transformed RSPs with the standard normal quantile: \begin{equation} r_{i}^{\text{Z}}(t_i, \delta_i, U_i)=-\Phi^{-1} (S_{i}^R(t_i, \delta_i, U_i)) \end{equation}

Note that in the original publication by Li et al. (2021), a negative sign was not incorporated into the definition of the Z-residual. Upon further consideration, it was determined that the addition of a negative sign is more appropriate. This modification ensures that larger residuals correspond to larger observed values, which is consistent with the convention for Pearson’s residuals.

Z-residuals are approximately standard normally distributed under the true model with estimated parameters. The approximate normality holds for any censoring distribution. Z-residuals can be used to check the goodness-of-fit of S_i(\cdot) quantitatively by applying SW or other normality tests to Z-residuals, and graphically by visualizing their QQ plots. Other diagnostic methods such as scatterplots and statistical tests can be applied to diagnose the relationship between Z-residuals and covariates. For example, by examining whether the Z-residuals within the k groups are homogeneously distributed, we can assess the functional form of the covariates.

R Functions for Computing Z-residuals

##input: survreg_fit is a survreg object
resid_survreg<-function(survreg_fit)
{
  distr<-survreg_fit$dist
  y<- survreg_fit$y
  m <- nrow (y)
  parms<- as.numeric(survreg_fit[["parms"]])
  alpha_hat<-1/survreg_fit$scale

  if (distr %in% c("weibull","exponential","logistic","lognormal",
                   "loglogistic","gaussian", "loggaussian","rayleigh"))
  {
    SP<-1-(psurvreg(as.data.frame(as.matrix(y))[,-2],
                    survreg_fit[["linear.predictors"]],
                    scale=1/alpha_hat, distribution=distr))
    haz <- dsurvreg(as.data.frame(as.matrix(y))[,-2],
                    survreg_fit[["linear.predictors"]],
                    scale=1/alpha_hat, distribution=distr)/SP
  }else if  (distr %in% "t")
  {
    SP<-1-(psurvreg(as.data.frame(as.matrix(y))[,-2],
                    survreg_fit[["linear.predictors"]],
                    scale=1/alpha_hat, distribution=distr,
                    parms = parms))
    haz <- dsurvreg(as.data.frame(as.matrix(y))[,-2],
                    survreg_fit[["linear.predictors"]],
                    scale=1/alpha_hat, distribution=distr,
                    parms = parms)/SP
  }else stop ("The distribution is not supported")
  censored <- which(as.data.frame(as.matrix(y))[,-1]==0)
  n.censored <- length(censored)
  ## Z-residuals
  RSP <- SP
  RSP[censored] <- RSP[censored]*runif(n.censored)
  zresid <- -qnorm(RSP)

  ## Unmodified CS residual
  ucs<- -log(SP)
  ## Modified CS residual
  MSP<- SP
  MSP[censored] <- SP[censored]/exp(1)
  mcs <- -log(MSP)
  nmsp <- -qnorm (MSP)
  ##Martingale Residual
  martg<- as.data.frame(as.matrix(survreg_fit$y))[,-1]- ucs
  ##Deviance Residual
  dev<- sign(martg)* sqrt((-2)*(martg+as.data.frame(as.matrix(survreg_fit$y))[,-1]*
                            log(as.data.frame(as.matrix(survreg_fit$y))[,-1]-martg)))
  zresid.sw.pvalue<-shapiro.test(zresid)$p.value
  ##hazard function
  haz_fn<- haz

  list(RSP=RSP,zresid=zresid,zresid.sw.pvalue=zresid.sw.pvalue,
       ucs=ucs, mcs=mcs,martg=martg, dev=dev, nmsp=nmsp,haz_fn=haz_fn)
}
## outputs:
### RSP --- Randomized Survival Probabilities
### zresid --- Normalized RSP
### zresid.sw.pvalue --- GOF test p-values by applying SW test to Z-residuals
### ucs --- unmodified CS residuals
### mcs --- modified CS residuals
### nmsp --- normalized modified SP
### martg --- Martingale residuals
### dev --- Deviance residuals
### haz_fn --- hazard function of cs residuals


##input: coxfit_fit is a coxph object
resid_coxph<-function(coxfit_fit)
{
  y<- coxfit_fit$y
  m <- nrow (y)
  mre <- resid(coxfit_fit, type="martingale")
  dre <- resid(coxfit_fit, type="deviance")
  ##Unmodified Cox-Snell residual
  ucs <- as.data.frame(as.matrix(y))[,-1] - mre
  ##Survival Function
  SP<- exp(-ucs)
  censored <- which(as.data.frame(as.matrix(y))[,-1]==0)
  n.censored <- length(censored)
  ##NMSP residual (normal-transformed modified survival prob)
  MSP<- SP
  MSP[censored] <- SP[censored]/exp(1)
  mcs <- -log(MSP)
  nmsp<- -qnorm(MSP)
  ##Z-residuals
  RSP <- SP
  RSP[censored] <- RSP[censored]*runif(n.censored)
  zresid <- -qnorm(RSP)
  zresid.sw.pvalue<-shapiro.test(zresid)$p.value
  list(zresid=zresid,RSP=RSP,zresid.sw.pvalue=zresid.sw.pvalue,
       ucs=ucs,mcs=mcs,nmsp=nmsp)
}
## outputs:
### RSP --- Randomized Survival Probabilities
### zresid --- Normalized RSP
### zresid.sw.pvalue --- GOF test p-values by applying SW test to Z-residuals
### ucs --- unmodified CS residuals
### mcs --- modified CS residuals
### nmsp --- normalized modified SP
### martg --- Martingale residuals
### dev --- Deviance residuals
### haz_fn --- hazard function of cs residuals

Installation

Copy the above R functions into your R enviroment.

NRSP vs Z-residuals

This page serves as supplementary material to the research paper by Li, L., Wu, T., & Feng, C. (2021). Within the aforementioned publication, we introduced a residual termed “normalized randomized survival probabilities residuals (NRSP residual).” Subsequently, for the purposes of brevity and enhanced interpretability, this nomenclature was revised. The residuals are now referred to as “Z-residuals”, reflecting the conventional use of the letter Z to denote a random variable following a standard normal distribution.

The R functions available on this page may still be employed for the computation of Z-residuals for survreg and coxph objects. However, the authors have also released an R package on GitHub called Zresidual, which is designed to calculate Z-residuals for a broader array of statistical models including generalized linear models and provide more diagnostic tools for Z-residuals. Further details are referred to the package documentation and a demonstration for diagnosing non-linearity.

References

RSP

Data Generation Function

##simulated data:t from weibull distrbution,c from exponentail distrbutions
set.seed(1)
rexp2 <- function(n, rate){ if (rate==0) rep(Inf,n) else rexp(n=n, rate = rate)}
simulated_data<- function(n,beta0 , beta1 , alpha, mean.censor)
{
  x <- rbinom(n, size = 1, p = 0.5)
  t0<- rexp2(n, rate= 1/mean.censor)
  survreg_sim_data <- rsurvreg( n, mean = beta0 + beta1 * x,
                                scale=1/alpha, distribution='weibull')
  t <- pmin(survreg_sim_data, t0)
  d <- as.numeric(t0>= survreg_sim_data )
  data_form<- data.frame(survreg_sim_data,t0,t,d,x)
  out_r<-list(data_form=data_form, alpha=alpha, beta0=beta0, beta1=beta1)
  return (out_r)
}

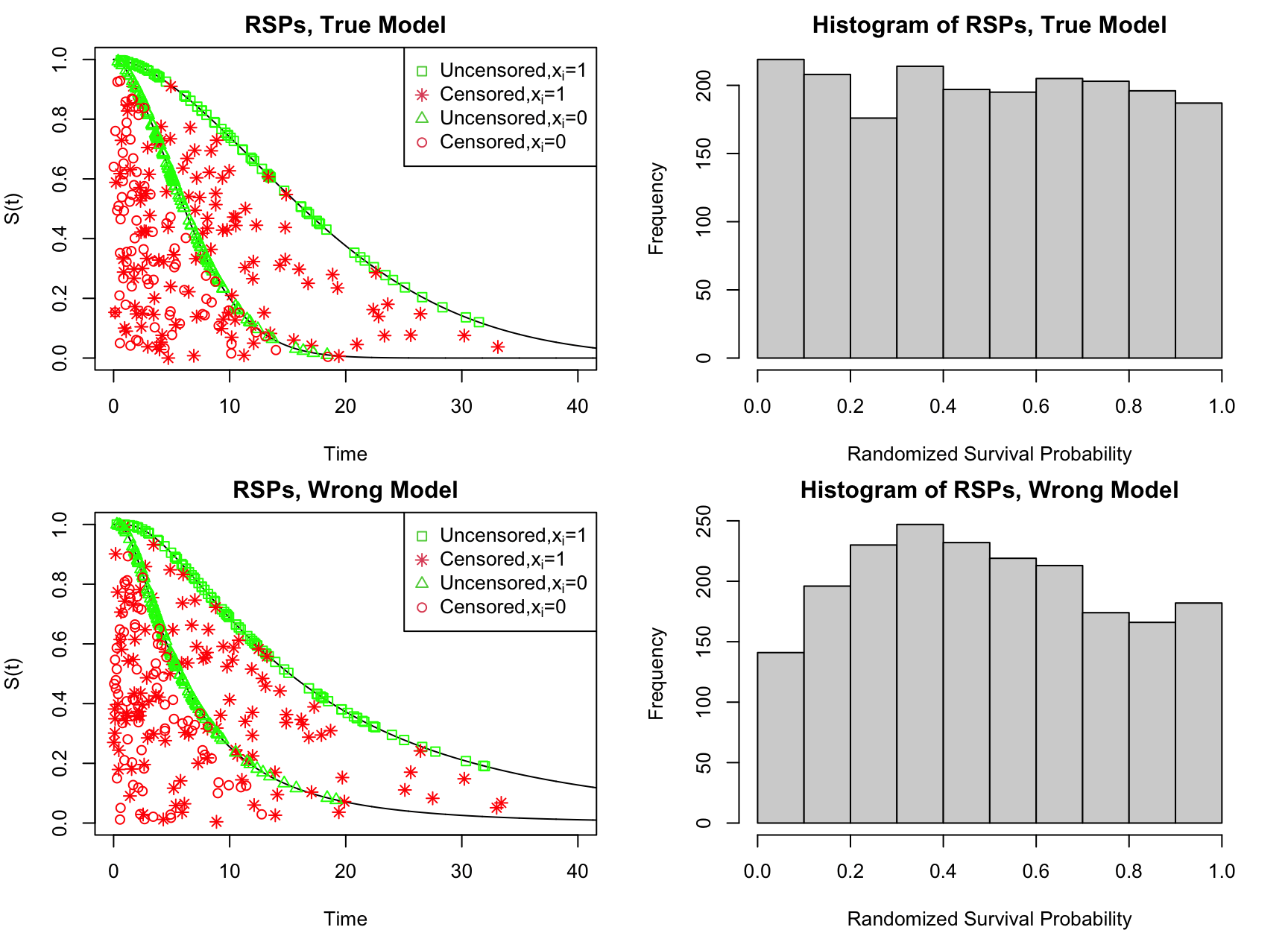

Animated Randomized Survival Probabilities of 50 Simulated Datasets

library("foreach")
library("survival")

n<-2000
beta0<-2
beta1<-1
alpha<-1.7
mean.censor<-14

##nrep is preset to a number
foreach (j = 1:nrep) %do%
{
   ## simulating a dataset
   out_r<- simulated_data(n=n,beta0=beta0,beta1=beta1,
                          alpha=alpha, mean.censor=mean.censor)
   simulated_data_random<-out_r$data_form

   ##checking censoring rate
   table(simulated_data_random$d)

   ##fit AFT model
   survreg_fit_t <- survreg(Surv(out_r[[1]]$t,
                                 out_r[[1]]$d) ~ out_r[[1]]$x,dist="weibull")
   survreg_fit_w <- survreg(Surv(out_r[[1]]$t,
                                 out_r[[1]]$d) ~ out_r[[1]]$x,dist="lognormal")

   ## compute residuals
   true_model <- resid_survreg(survreg_fit_t)
   wrong_model<- resid_survreg(survreg_fit_w)

   rsp.t <- true_model$RSP
   zresid.t<- true_model$zresid
   rsp.w <- wrong_model$RSP
   zresid.w<- wrong_model$zresid

   t<-seq(0, 50, length=n)
   gp1<- which(out_r[[1]]$x==1&out_r[[1]]$d==1)
   gp2<- which(out_r[[1]]$x==1&out_r[[1]]$d==0)
   gp3<- which(out_r[[1]]$x==0&out_r[[1]]$d==1)
   gp4<- which(out_r[[1]]$x==0&out_r[[1]]$d==0)

   s1.t<-1-(psurvreg(t, mean=sum(survreg_fit_t$coefficients),
                     scale=survreg_fit_t$scale, distribution="weibull"))
   s0.t<-1-(psurvreg(t, mean=survreg_fit_t$coefficients[[1]],
                     scale=survreg_fit_t$scale, distribution="weibull"))

   s1.w<-1-(psurvreg(t, mean=sum(survreg_fit_w$coefficients),
                     scale=survreg_fit_w$scale, distribution="lognormal"))
   s0.w<-1-(psurvreg(t, mean=survreg_fit_w$coefficients[[1]],
                     scale=survreg_fit_w$scale, distribution="lognormal"))

   par(mfrow = c(2,2),mar=c(4,4,2,2))

   ##The plot of true model
   plot(t, s1.t,type="l", ylab="S(t)",xlab="Time",
        main="RSPs, True Model",ylim=c(0,1.0),xlim=c(0,40))
   lines(t, s0.t)
   ### choose a random sample of observations for display
   sp <- sample(1:n,400)
   s.gp1 <- gp1[which(gp1 %in% sp)]
   s.gp2 <- gp2[which(gp2 %in% sp)]
   s.gp3 <- gp3[which(gp3 %in% sp)]
   s.gp4 <- gp4[which(gp4 %in% sp)]

   points(out_r[[1]]$t[s.gp1], rsp.t[s.gp1],col="green",pch=0)
   points(out_r[[1]]$t[s.gp2],rsp.t[s.gp2],col="red",pch=8)
   points(out_r[[1]]$t[s.gp3],rsp.t[s.gp3],pch=2,col="green")
   points(out_r[[1]]$t[s.gp4],rsp.t[s.gp4],pch=1,col="red")
   legend ("topright",
           legend = c(expression('Uncensored,x'['i']*"=1"),
                      expression('Censored,x'['i']*'=1'),
                      expression('Uncensored,x'['i']*'=0'),
                      expression('Censored,x'['i']*'=0')),
           pch=c(0,8,2,1), col = c(3,2,3,2))
   hist(rsp.t,xlab="Randomized Survival Probability",main="Histogram of RSPs, True Model")

   ##The plot of wrong model
   plot(t, s1.w,type="l",ylab="S(t)",xlab="Time",main="RSPs, Wrong Model",
        ylim=c(0,1.0),xlim=c(0,40))
   lines(t, s0.w)

   sp <- sample(1:n,400)
   s.gp1 <- gp1[which(gp1 %in% sp)]
   s.gp2 <- gp2[which(gp2 %in% sp)]
   s.gp3 <- gp3[which(gp3 %in% sp)]
   s.gp4 <- gp4[which(gp4 %in% sp)]

   points(out_r[[1]]$t[s.gp1],rsp.w[s.gp1],col="green",pch=0)
   points(out_r[[1]]$t[s.gp2],rsp.w[s.gp2],col="red",pch=8)
   points(out_r[[1]]$t[s.gp3],rsp.w[s.gp3],pch=2,col="green")
   points(out_r[[1]]$t[s.gp4],rsp.w[s.gp4],pch=1,col="red")

   legend ("topright", legend = c(expression('Uncensored,x'['i']*"=1"),
                                  expression('Censored,x'['i']*'=1'),
                                  expression('Uncensored,x'['i']*'=0'),
                                  expression('Censored,x'['i']*'=0')),
           pch=c(0,8,2,1), col = c(3,2,3,2)
          )
   hist(rsp.w,xlab="Randomized Survival Probability",
        main="Histogram of RSPs, Wrong Model")
}

References

Detailed explanations about this illustration can be found from this paper:

Wrong Family

Data Generation Function

##simulated data:t from weibull distrbution,c from exponentail distrbutions
set.seed(1)
rexp2 <- function(n, rate){ if (rate==0) rep(Inf,n) else rexp(n=n, rate = rate)}
simulated_data<- function(n,beta0 , beta1 , alpha, mean.censor)
{
  x <- rbinom(n, size = 1, p = 0.5)
  t0<- rexp2(n, rate= 1/mean.censor)
  survreg_sim_data <- rsurvreg( n, mean = beta0 + beta1 * x,
                                scale=1/alpha, distribution='weibull')
  t <- pmin(survreg_sim_data, t0)
  d <- as.numeric(t0>= survreg_sim_data )
  data_form<- data.frame(survreg_sim_data,t0,t,d,x)
  out_r<-list(data_form=data_form, alpha=alpha, beta0=beta0, beta1=beta1)
  return (out_r)
}

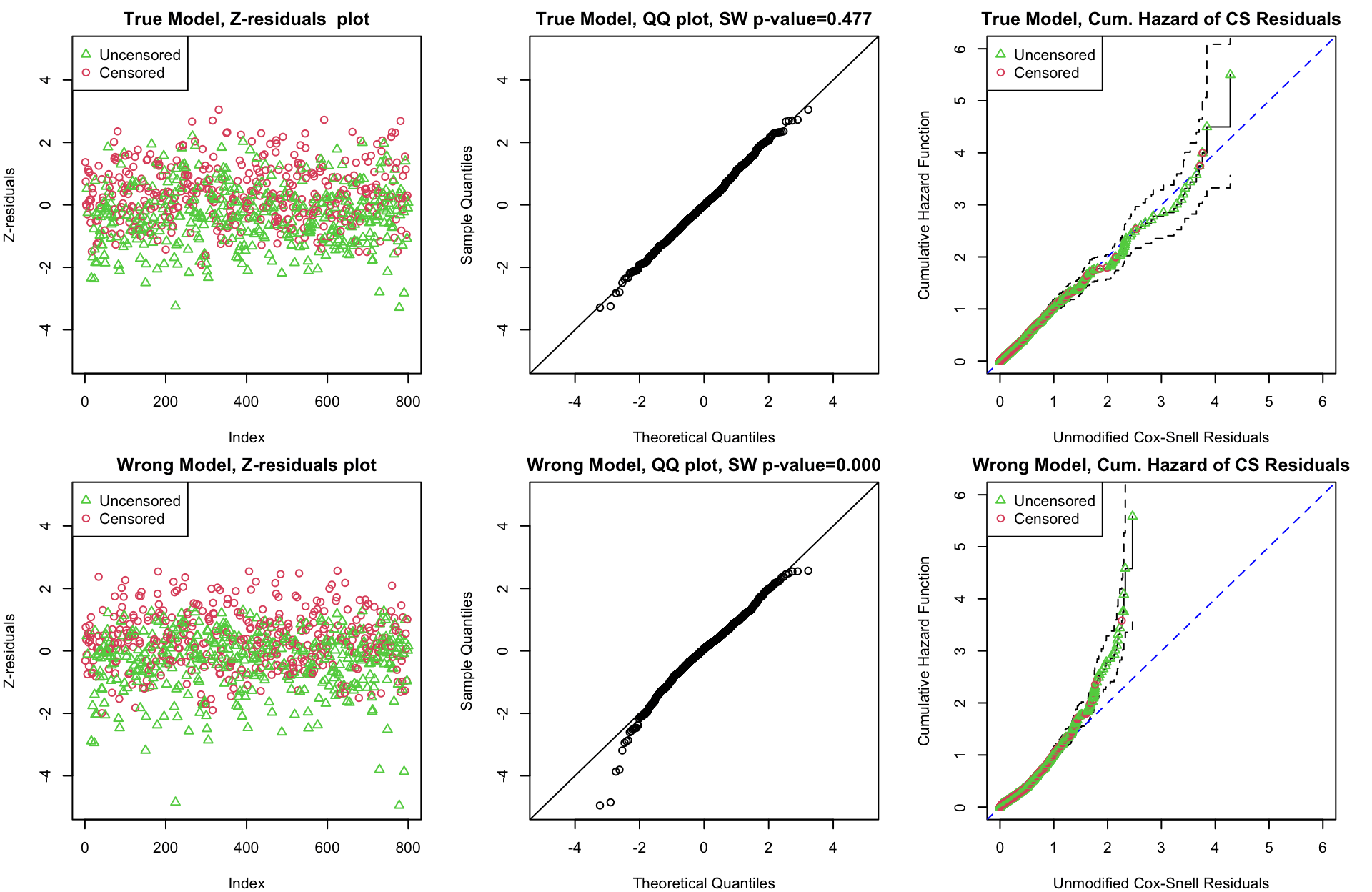

Animated Z-residuals and Cumuative Hazard of CS Residuals of 50 Simulated Datasets

library("foreach")
library("survival")


n<- 800
beta0<-2
beta1<-1
alpha<-2
mean.censor<-14.6

##nrep is preset to a number
foreach (j = 1:nrep) %do%
{
    ## simulating a dataset
    out_r<- simulated_data(n=n,beta0=beta0,beta1=beta1,
                           alpha=alpha, mean.censor=mean.censor)
    simulated_data_random<-out_r$data_form
    ##checking censoring rate
    table(simulated_data_random$d)

    ##fit AFT model
    true_model <- survreg(Surv(out_r[[1]]$t, out_r[[1]]$d) ~ out_r[[1]]$x,dist="weibull")
    wrong_model <- survreg(Surv(out_r[[1]]$t, out_r[[1]]$d) ~ out_r[[1]]$x,dist="lognormal")
    zresid.t<-resid_survreg(true_model)
    zresid.w<-resid_survreg(wrong_model)

    ##the cumulative hazard function estimated by Kaplan-Meier method of CS residuals
    km.ucs.t <- survfit(Surv(zresid.t$ucs, out_r[[1]]$d)~1,type='fleming')
    id.ucs.t<-order(zresid.t$ucs)
    km.ucs.w <- survfit(Surv(zresid.w$ucs, out_r[[1]]$d)~1,type='fleming')
    id.ucs.w<-order(zresid.w$ucs)
    ##The plot of true model
    par(mfrow = c(2,3),mar=c(4,4,2,2))
    resid.lim <- c(-1,1) * max(range(abs(zresid.t$zresid),abs(zresid.w$zresid)),5)
    cs.lim <- c(0,max(6,range(km.ucs.t$cumhaz,km.ucs.w$cumhaz)))

    plot(zresid.t$zresid,ylab="Z-residuals",col=out_r[[1]]$d+2,pch=out_r[[1]]$d+1,
         ylim=resid.lim, main="True Model, Z-residuals  plot")
    legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),
            col = c(3,2), cex=1)

    qqnorm(zresid.t$zresid,xlab="Theoretical Quantiles", ylab="Sample Quantiles",
           main= paste0("True Model, QQ plot, SW p-value=",
                       sprintf("%4.3f",zresid.t$zresid.sw.pvalue)),
           xlim=resid.lim, ylim = resid.lim)
    abline(a=0, b=1)


    plot(km.ucs.t, fun="cumhaz", xlab="Unmodified Cox-Snell Residuals",
         ylab="Cumulative Hazard Function",
         main="True Model, Cum. Hazard of CS Residuals",
         xlim=c(0,6), ylim = c(0,6))
    abline(a=0, b=1, col="blue", lty=2)

    points(km.ucs.t$time, -log(km.ucs.t$surv), col =out_r[[1]]$d[id.ucs.t]+2,
           pch=out_r[[1]]$d[id.ucs.t]+1)
    legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),
            col = c(3,2), cex=1)


    ##The plot of wrong model

    plot(zresid.w$zresid,ylab="Z-residuals",col=out_r[[1]]$d+2,pch=out_r[[1]]$d+1,
         ylim=resid.lim, main="Wrong Model, Z-residuals plot")
    legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),col = c(3,2), cex=1)

    qqnorm(zresid.w$zresid,xlab="Theoretical Quantiles", ylab="Sample Quantiles",
           main=paste0("Wrong Model, QQ plot, SW p-value=",
                       sprintf("%4.3f",zresid.w$zresid.sw.pvalue)),
           xlim=resid.lim, ylim = resid.lim)
    abline(a=0,b=1)


    plot(km.ucs.w, fun="cumhaz", xlab=("Unmodified Cox-Snell Residuals"),
         ylab=("Cumulative Hazard Function"),
         main="Wrong Model, Cum. Hazard of CS Residuals",
         xlim=c(0,6), ylim = c(0,6))
    abline(a=0, b=1, col="blue", lty=2)

    points(km.ucs.w$time, -log(km.ucs.w$surv), col =out_r[[1]]$d[id.ucs.w]+2,
           pch=out_r[[1]]$d[id.ucs.w]+1)
    legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),col = c(3,2), cex=1)
}

References

Detailed explanations about this simulation can be found from this paper:

Non-linearity

Data Generation Function

##simulated data:t from weibull distrbution,c from exponentail distrbutions
set.seed(1)
rexp2 <- function(n, rate){ if (rate==0) rep(Inf,n) else rexp(n=n, rate = rate)}
simulated_data<- function(n, beta0, beta1, alpha, mean.censor)
{
  x <- runif(n,0,(3*pi)/2)
  fx <-  sin(2*x)
  t0<- rexp2(n,rate= 1/mean.censor)
  ##gamma is shape
  survreg_sim_data <- rsurvreg( n, mean = beta0 + beta1 * fx,
                                scale=1/alpha, distribution='weibull')
  t <- pmin(survreg_sim_data, t0)
  d <- as.numeric(t0>= survreg_sim_data )
  data_form<- data.frame(survreg_sim_data,t0,t,d,x, fx)
  out_r<-list(data_form=data_form, alpha=alpha, beta0=beta0, beta1=beta1)
  return (out_r)
}

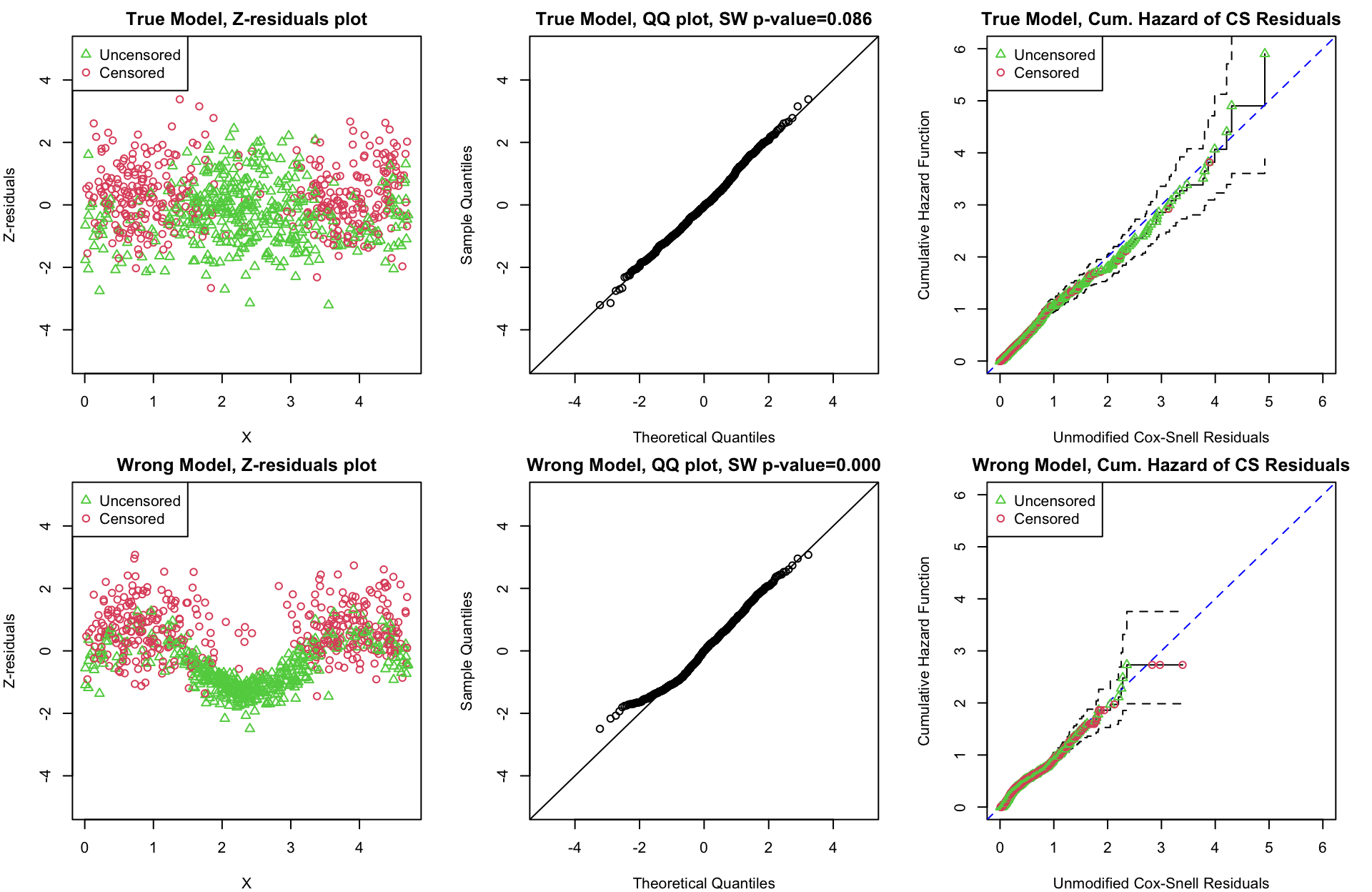

Animated Z-residuals and Cumuative Hazard of CS Residuals of 50 Simulated Datasets

library("foreach")
library("survival")

n<-800
beta0<-2
beta1<-2
alpha<-1.8
mean.censor<-16

##nrep is preset to a number

foreach (j = 1:nrep) %do%
{
    ## simulating a dataset
    out_r<- simulated_data(n=n,beta0=beta0,beta1=beta1,
                           alpha=alpha,mean.censor=mean.censor)
    simulated_data_random<-out_r$data_form
    ##checking censoring rate
    table(simulated_data_random$d)
    ##fit AFT model
    true_model <- survreg(Surv(out_r[[1]]$t , out_r[[1]]$d) ~ out_r[[1]]$fx,dist="weibull")
    wrong_model <- survreg(Surv(out_r[[1]]$t , out_r[[1]]$d) ~ out_r[[1]]$x,dist="weibull")
    zresid.t<-resid_survreg(true_model)
    zresid.w<-resid_survreg(wrong_model)
    ##the cumulative hazard function estimated by Kaplan-Meier method of CS residuals
    km.ucs.t <- survfit(Surv(zresid.t$ucs, out_r[[1]]$d)~1,type='fleming')
    id.ucs.t<-order(zresid.t$ucs)
    km.ucs.w <- survfit(Surv(zresid.w$ucs, out_r[[1]]$d)~1,type='fleming')
    id.ucs.w<-order(zresid.w$ucs)

    par(mfrow = c(2,3),mar=c(4,4,2,2))
    resid.lim <- c(-1,1) * max(range(abs(zresid.t$zresid),abs(zresid.w$zresid)),5)
    cs.lim <- c(0,max(6,range(km.ucs.t$cumhaz,km.ucs.w$cumhaz)))
    ##The plot of true model
    plot(simulated_data_random$x,zresid.t$zresid,xlab="X",ylab="Z-residuals",col=out_r[[1]]$d+2,
         pch=out_r[[1]]$d+1,main="True Model, Z-residuals plot",ylim=resid.lim)
    legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),col = c(3,2), cex=1)

    qqnorm(zresid.t$zresid,xlab="Theoretical Quantiles", ylab="Sample Quantiles",
           main=paste0("True Model, QQ plot, SW p-value=",
                       sprintf("%4.3f",zresid.t$zresid.sw.pvalue)),
           xlim=resid.lim, ylim = resid.lim);abline(a=0,b=1)

    plot(km.ucs.t, fun="cumhaz", xlab="Unmodified Cox-Snell Residuals",
         ylab="Cumulative Hazard Function",
         main="True Model, Cum. Hazard of CS Residuals",
         xlim=c(0,6), ylim = c(0,6))
    abline(0, 1, col="blue", lty=2)
    points(km.ucs.t$time, -log(km.ucs.t$surv), col =out_r[[1]]$d[id.ucs.t]+2,
           pch=out_r[[1]]$d[id.ucs.t]+1)
    legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),col = c(3,2), cex=1)

    ##The plot of wrong model
    plot(simulated_data_random$x,zresid.w$zresid,xlab="X",ylab="Z-residuals",col=out_r[[1]]$d+2,
         pch=out_r[[1]]$d+1,main="Wrong Model, Z-residuals plot",ylim=resid.lim)
    legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),col = c(3,2), cex=1)

    qqnorm(zresid.w$zresid,xlab="Theoretical Quantiles", ylab="Sample Quantiles",
           main=paste0("Wrong Model, QQ plot, SW p-value=",
                       sprintf("%4.3f",zresid.w$zresid.sw.pvalue)),
           xlim=resid.lim, ylim = resid.lim);abline(a=0,b=1)

    plot(km.ucs.w, fun="cumhaz", xlab=("Unmodified Cox-Snell Residuals"),
         ylab=("Cumulative Hazard Function"),
         main="Wrong Model, Cum. Hazard of CS Residuals",
         xlim=c(0,6), ylim = c(0,6))
    abline(0, 1, col="blue", lty=2)
    points(km.ucs.w$time, -log(km.ucs.w$surv), col =out_r[[1]]$d[id.ucs.w]+2,
           pch=out_r[[1]]$d[id.ucs.w]+1)
    legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),col = c(3,2), cex=1)
}

References

Detailed explanations about this simulation and other more powerful methods for checking covariate functional form are described in this paper:

Real Data

Load a dataset

library(survival)
real.data <- read.csv("real_data.csv")
real.data$grade <- as.factor(real.data$grade)
real.data

Fit three AFT Models

##fit three AFT models
fit_weibull     <- survreg(Surv(real.data$time , real.data$status)~.,
                           data=real.data[,-c(1:3)],dist="weibull")
fit_lognormal   <- survreg(Surv(real.data$time , real.data$status)~.,
                           data=real.data[,-c(1:3)],dist="lognormal")
fit_loglogistic <- survreg(Surv(real.data$time , real.data$status) ~.,
                           data=real.data[,-c(1:3)],dist="loglogistic")

50 Sets of Replicated Z-residuals

library("foreach")
##nrep is preset for controlling the number of replications of Z-residuals
foreach (j = 1:nrep) %do%
{
  ##compute residuals (including Z-residuals)
  resid.wb<-resid_survreg(fit_weibull)
  resid.ln<-resid_survreg(fit_lognormal)
  resid.ll<-resid_survreg(fit_loglogistic)

  ##the cumulative hazard function estimated by Kaplan-Meier method of CS residuals
  km.wb <- survfit(Surv(resid.wb$ucs, real.data$status)~1,type='fleming')
  id.wb<-order(resid.wb$ucs)
  km.ln <- survfit(Surv(resid.ln$ucs, real.data$status)~1,type='fleming')
  id.ln<-order(resid.ln$ucs)
  km.ll <- survfit(Surv(resid.ll$ucs, real.data$status)~1,type='fleming')
  id.ll<-order(resid.ll$ucs)

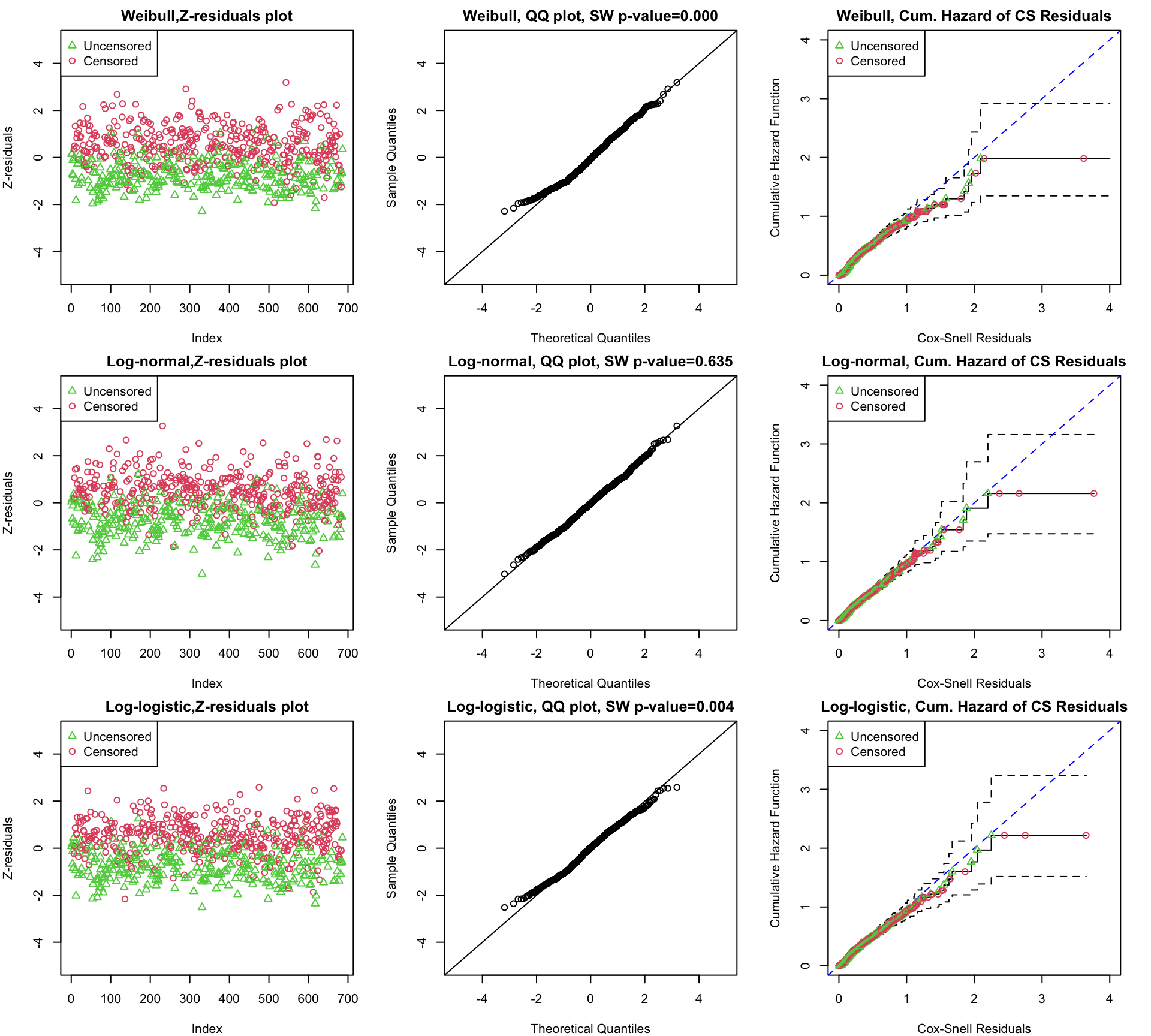

  par(mfrow = c(3,3),mar=c(4,4,2,2))

  ##The plot of Weibull model
  plot(resid.wb$zresid,xlab="Index", ylab="Z-residuals",main="Weibull,Z-residuals plot",
       col=real.data$status+2, pch=real.data$status+1,ylim=c(-5,5))
  legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),
          col = c(3,2), cex=1)

  qqnorm(resid.wb$zresid,xlab="Theoretical Quantiles",ylab="Sample Quantiles",
         main=paste0("Weibull, QQ plot, SW p-value=",
                     sprintf("%4.3f", resid.wb$zresid.sw.pvalue)),
         xlim=c(-5,5), ylim = c(-5,5))
  abline(a=0,b=1)


  plot(km.wb, fun="cumhaz", xlab="Cox-Snell Residuals",
       ylab="Cumulative Hazard Function",
       main="Weibull, Cum. Hazard of CS Residuals",
       ylim= c(0,4),xlim=c(0,4))
  abline(0, 1, col="blue", lty=2)
  points(km.wb$time,-log(km.wb$surv), col=real.data$status[id.wb]+2,
         pch=real.data$status[id.wb]+1 )
  legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),
          col = c(3,2), cex=1)

  ##The plot of Log-normal model
  plot(resid.ln$zresid,xlab="Index",ylab="Z-residuals",main="Log-normal,Z-residuals plot",
       col=real.data$status+2, pch=real.data$status+1,ylim=c(-5,5))
  legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),
          col = c(3,2), cex=1)

  qqnorm(resid.ln$zresid,xlab="Theoretical Quantiles", ylab="Sample Quantiles",
         main=paste0("Log-normal, QQ plot, SW p-value=",
                     sprintf("%4.3f", resid.ln$zresid.sw.pvalue)),
         xlim=c(-5,5), ylim = c(-5,5))
  abline(a=0,b=1)


  plot(km.ln, fun="cumhaz", xlab=("Cox-Snell Residuals"),
       ylab=("Cumulative Hazard Function"),
       main="Log-normal, Cum. Hazard of CS Residuals",
       ylim= c(0,4),xlim=c(0,4))
  abline(0, 1, col="blue", lty=2)
  points(km.ln$time, -log(km.ln$surv),col=real.data$status[id.ln]+2,
         pch=real.data$status[id.ln]+1 )
  legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),
          col = c(3,2), cex=1)


  ##The plot of Log-logistic model
  plot(resid.ll$zresid,xlab="Index",ylab="Z-residuals",main="Log-logistic,Z-residuals plot",
       col=real.data$status+2, pch=real.data$status+1,ylim=c(-5,5))
  legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),
          col = c(3,2), cex=1)

  qqnorm(resid.ll$zresid,xlab="Theoretical Quantiles", ylab="Sample Quantiles",
         main=paste0("Log-logistic, QQ plot, SW p-value=",
                     sprintf("%4.3f", resid.ll$zresid.sw.pvalue)),
         xlim=c(-5,5), ylim = c(-5,5))
  abline(a=0,b=1)

  plot(km.ll, fun="cumhaz", xlab=("Cox-Snell Residuals"),
       ylab=("Cumulative Hazard Function"),
       main="Log-logistic, Cum. Hazard of CS Residuals",
       ylim= c(0,4),xlim=c(0,4))
  abline(0, 1, col="blue", lty=2)
  points(km.ll$time, -log(km.ll$surv), col=real.data$status[id.ll]+2,
         pch=real.data$status[id.ll]+1)
  legend ("topleft", pch = c(2,1), legend = c("Uncensored", "Censored"),
          col = c(3,2), cex=1)
}

References

Detailed explanations about the data analysis and additional diagnostics for the above models are described in this paper:

  • Li, L., Wu, T., Feng, C. (2021). Model diagnostics for censored regression via randomized survival probabilities. Statistics in Medicine 40, 1482–1497. [PDF]; [R Functions and Demonstration]; [slides]
