treatments <- LETTERS[1:4]
rep.treatments <- rep(treatments, each = 5)
rep.treatments [1] "A" "A" "A" "A" "A" "B" "B" "B" "B" "B" "C" "C" "C" "C" "C" "D" "D" "D" "D"
[20] "D"sample (rep.treatments) [1] "D" "C" "B" "A" "D" "D" "C" "A" "A" "D" "B" "C" "B" "B" "C" "A" "A" "C" "D"
[20] "B"data.frame(run.ID = 1:20, treatment = sample (rep.treatments))This section analyzes data from a Completely Randomized Design (CRD). In a CRD, experimental units (in this case, the silicon wafers being etched) are assigned to treatments (the RF Power levels) completely at random. The primary goal is to determine if changing the RF Power level has a statistically significant effect on the mean etch rate.
We begin by loading the data into a single, tidy data.frame. The response variable, rate, contains all the etch rate observations. The predictor variable, power, is a factor, which is R’s way of representing a categorical variable. This tells R to treat the different power levels as distinct groups.
## Define the data vectors
rate <- c(575, 542, 530, 539, 570, 565, 593, 590, 579, 610,
600, 651, 610, 637, 629, 725, 700, 715, 685, 710)
power_levels <- c(160, 180, 200, 220)
## Create the data frame
etching_df <- data.frame(
rate = rate,
power = factor(rep(power_levels, each = 5))
)
## Display the first few rows

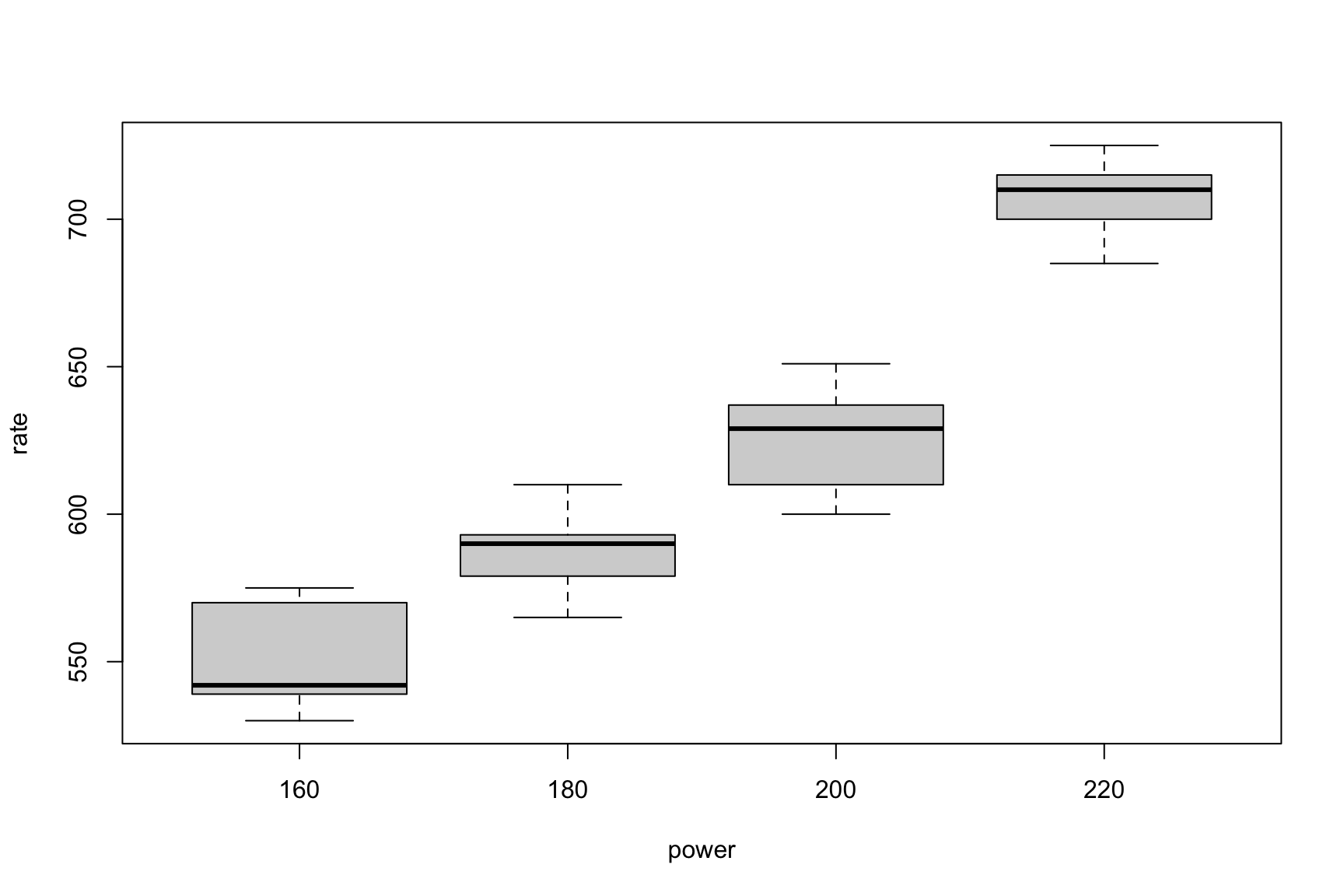

etching_dfGrouped Boxplots
boxplot(rate~power, data=etching_df)

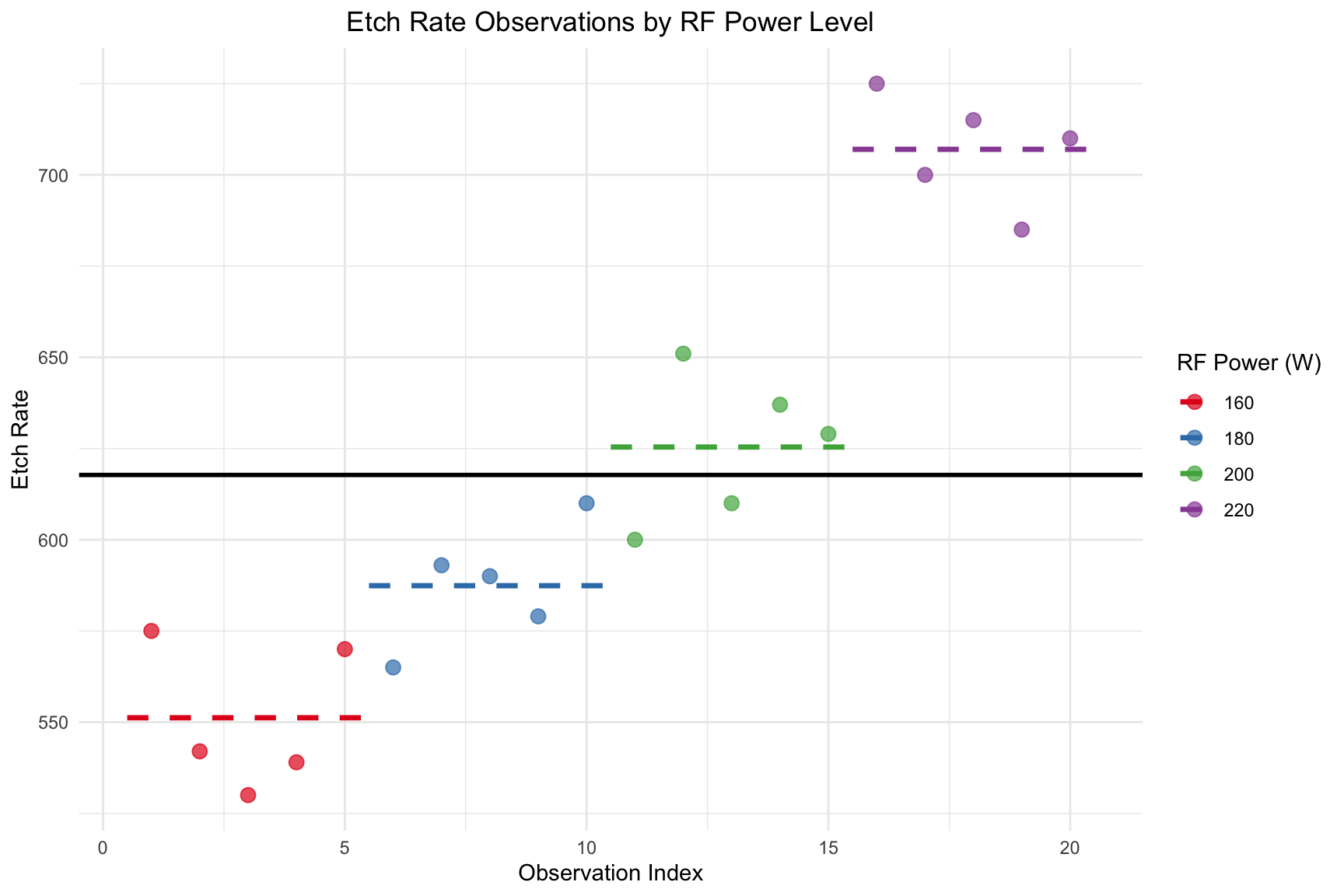

Using ggplot to visualize grouped data
library(ggplot2)
library(dplyr) # Using dplyr for easier data manipulation
## Calculate group means and their start/end indices
mean_rates <- etching_df %>%
mutate(obs_index = row_number()) %>%
group_by(power) %>%
summarise(
mean_rate = mean(rate),
x_start = min(obs_index) - 0.5,
x_end = max(obs_index) + 0.5
)
ggplot(etching_df, aes(x = 1:nrow(etching_df), y = rate, color = power)) +
geom_hline(
yintercept = mean(etching_df$rate),
linetype = "solid",
color = "black",
size = 1
) +
# ----------------------------------------
geom_point(size = 3, alpha = 0.7) + # Plot individual data points
geom_segment(
data = mean_rates,
aes(x = x_start, xend = x_end, y = mean_rate, yend = mean_rate),
linetype = "dashed",
size = 1.2
) + # Add line segments for group means
labs(
title = "Etch Rate Observations by RF Power Level",
x = "Observation Index",
y = "Etch Rate",
color = "RF Power (W)"
) +
scale_color_brewer(palette = "Set1") +
theme_minimal() +
theme(plot.title = element_text(hjust = 0.5))
fit_nointercpt <- lm(rate ~ 0+power, data = etching_df)
model.matrix(fit_nointercpt) power160 power180 power200 power220
1 1 0 0 0
2 1 0 0 0
3 1 0 0 0
4 1 0 0 0
5 1 0 0 0
6 0 1 0 0
7 0 1 0 0
8 0 1 0 0
9 0 1 0 0
10 0 1 0 0
11 0 0 1 0
12 0 0 1 0
13 0 0 1 0
14 0 0 1 0
15 0 0 1 0
16 0 0 0 1
17 0 0 0 1
18 0 0 0 1
19 0 0 0 1
20 0 0 0 1
attr(,"assign")
[1] 1 1 1 1
attr(,"contrasts")
attr(,"contrasts")$power
[1] "contr.treatment"summary(fit_nointercpt)
Call:
lm(formula = rate ~ 0 + power, data = etching_df)
Residuals:
Min 1Q Median 3Q Max
-25.4 -13.0 2.8 13.2 25.6
Coefficients:
Estimate Std. Error t value Pr(>|t|)
power160 551.200 8.169 67.47 <2e-16 ***
power180 587.400 8.169 71.90 <2e-16 ***
power200 625.400 8.169 76.55 <2e-16 ***
power220 707.000 8.169 86.54 <2e-16 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 18.27 on 16 degrees of freedom
Multiple R-squared: 0.9993, Adjusted R-squared: 0.9991
F-statistic: 5768 on 4 and 16 DF, p-value: < 2.2e-16confint(fit_nointercpt) 2.5 % 97.5 %
power160 533.8815 568.5185
power180 570.0815 604.7185
power200 608.0815 642.7185
power220 689.6815 724.3185anova(fit_nointercpt)This ANOVA result is typically unwanted. If we want to see the causal effect of power, we need to compare to intercept-only model:
fit_intercept <- lm(rate ~ 1, data = etching_df)
anova(fit_intercept, fit_nointercpt)We fit a linear model using the lm() function to perform an Analysis of Variance (ANOVA). The model is specified as rate ~ power, and we now include the data = etching_df argument.
To get interpretable estimates for the treatment effects (\(\tau_i\)), we use a sum-to-zero constraint (contr.sum), which forces the sum of the treatment effects to be zero (\(\sum \tau_i = 0\)).
fit <- lm(rate ~ power, data = etching_df, contrasts = list(power = contr.sum))Model Matrix:
model.matrix(fit) (Intercept) power1 power2 power3
1 1 1 0 0
2 1 1 0 0
3 1 1 0 0
4 1 1 0 0
5 1 1 0 0
6 1 0 1 0
7 1 0 1 0
8 1 0 1 0
9 1 0 1 0
10 1 0 1 0
11 1 0 0 1
12 1 0 0 1
13 1 0 0 1
14 1 0 0 1
15 1 0 0 1
16 1 -1 -1 -1
17 1 -1 -1 -1
18 1 -1 -1 -1
19 1 -1 -1 -1
20 1 -1 -1 -1
attr(,"assign")
[1] 0 1 1 1
attr(,"contrasts")
attr(,"contrasts")$power
[,1] [,2] [,3]
160 1 0 0
180 0 1 0
200 0 0 1
220 -1 -1 -1Summary of lm fitting results:
summary.fit <- summary(fit)
summary.fit
Call:
lm(formula = rate ~ power, data = etching_df, contrasts = list(power = contr.sum))
Residuals:
Min 1Q Median 3Q Max
-25.4 -13.0 2.8 13.2 25.6
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 617.750 4.085 151.234 < 2e-16 ***
power1 -66.550 7.075 -9.406 6.39e-08 ***
power2 -30.350 7.075 -4.290 0.000563 ***
power3 7.650 7.075 1.081 0.295602
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 18.27 on 16 degrees of freedom
Multiple R-squared: 0.9261, Adjusted R-squared: 0.9122
F-statistic: 66.8 on 3 and 16 DF, p-value: 2.883e-09Confidence Interval for Centralized Effects:
The output of the model provides estimates for the overall mean (\(\hat{\mu}\)) and the treatment effects for the first k-1 levels (\(\hat{\tau}_1, \hat{\tau}_2, \hat{\tau}_3\)).
Using the sum-to-zero constraint, we can manually calculate the effect for the final level, \(\hat{\tau}_4\).
# Define a named vector of all linear combinations
#
# NOTE: Replace 'power1', 'power2', 'power3' with the
# actual names from your coef(fit) output.
#
# The names on the left (e.g., "Level_1_Effect") are
# for you; they will label the output rows.
library(biostat3)
k_all_levels <- c(
"Effect for Level 1" = "power1",
"Effect for Level 2" = "power2",
"Effect for Level 3" = "power3",
"Effect for Level 4" = "-power1 - power2 - power3"
)
# Run lincom on the whole vector
lincom(fit, k_all_levels) Estimate 2.5 % 97.5 % Df Sum of Sq
Effect for Level 1 -66.55 -80.41666 -52.68334 1 29526.02
Effect for Level 2 -30.35 -44.21666 -16.48334 1 6140.817
Effect for Level 3 7.65 -6.216659 21.51666 1 390.15
Effect for Level 4 89.25 75.38334 103.1167 1 53103.75 ##### Estimate of Treatment MeansWe can verify the above results by looking at the point estimate of centralized effect by direct calculation. The construction of CI is more complicated, hence, omitted.
## Extract coefficients
est <- coef(fit)
tau4.hat <- -sum(est[-1])
taui.hat <- c(est[-1], tau4.hat)
print(taui.hat)power1 power2 power3
-66.55 -30.35 7.65 89.25 The ANOVA table partitions the total variation into variation between treatment groups (power) and variation within treatment groups (random error). The p-value (Pr(>F)) indicates if the treatment has a significant effect.
anova(fit)Fitting the model without specifying contrasts uses R’s default (“treatment” contrast), which sets \(\tau_1 = 0\). The fundamental results (ANOVA, treatment means) remain unchanged.
fit1 <- lm(rate ~ power, data = etching_df)
model.matrix(fit1) (Intercept) power180 power200 power220
1 1 0 0 0
2 1 0 0 0
3 1 0 0 0
4 1 0 0 0
5 1 0 0 0
6 1 1 0 0
7 1 1 0 0
8 1 1 0 0
9 1 1 0 0
10 1 1 0 0
11 1 0 1 0
12 1 0 1 0
13 1 0 1 0
14 1 0 1 0
15 1 0 1 0
16 1 0 0 1
17 1 0 0 1
18 1 0 0 1
19 1 0 0 1
20 1 0 0 1
attr(,"assign")
[1] 0 1 1 1
attr(,"contrasts")
attr(,"contrasts")$power
[1] "contr.treatment"summary(fit1)
Call:
lm(formula = rate ~ power, data = etching_df)
Residuals:
Min 1Q Median 3Q Max
-25.4 -13.0 2.8 13.2 25.6
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 551.200 8.169 67.471 < 2e-16 ***
power180 36.200 11.553 3.133 0.00642 **
power200 74.200 11.553 6.422 8.44e-06 ***
power220 155.800 11.553 13.485 3.73e-10 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 18.27 on 16 degrees of freedom
Multiple R-squared: 0.9261, Adjusted R-squared: 0.9122
F-statistic: 66.8 on 3 and 16 DF, p-value: 2.883e-09Using 200 as the baseline
If we want to treat power200 as the baseline, we do this:
# modifying the levels of power
etching_df$power <- factor(etching_df$power, levels=c("200","160", "180", "220"))fit1_200 <- lm(rate ~ power, data = etching_df)
model.matrix(fit1_200) (Intercept) power160 power180 power220
1 1 1 0 0
2 1 1 0 0
3 1 1 0 0
4 1 1 0 0
5 1 1 0 0
6 1 0 1 0
7 1 0 1 0
8 1 0 1 0
9 1 0 1 0
10 1 0 1 0
11 1 0 0 0
12 1 0 0 0
13 1 0 0 0
14 1 0 0 0
15 1 0 0 0
16 1 0 0 1
17 1 0 0 1
18 1 0 0 1
19 1 0 0 1
20 1 0 0 1
attr(,"assign")
[1] 0 1 1 1
attr(,"contrasts")
attr(,"contrasts")$power
[1] "contr.treatment"summary(fit1_200)
Call:
lm(formula = rate ~ power, data = etching_df)
Residuals:
Min 1Q Median 3Q Max
-25.4 -13.0 2.8 13.2 25.6
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 625.400 8.169 76.553 < 2e-16 ***
power160 -74.200 11.553 -6.422 8.44e-06 ***
power180 -38.000 11.553 -3.289 0.00462 **
power220 81.600 11.553 7.063 2.68e-06 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 18.27 on 16 degrees of freedom
Multiple R-squared: 0.9261, Adjusted R-squared: 0.9122
F-statistic: 66.8 on 3 and 16 DF, p-value: 2.883e-09ANOVA
anova(fit1_200)Using 220 as the baseline
If we want to treat power220 as the baseline, we do this:
etching_df$power <- factor(etching_df$power, levels=c("220","160", "180","200" ))fit1_220 <- lm(rate ~ power, data = etching_df)
model.matrix(fit1_220) (Intercept) power160 power180 power200
1 1 1 0 0
2 1 1 0 0
3 1 1 0 0
4 1 1 0 0
5 1 1 0 0
6 1 0 1 0
7 1 0 1 0
8 1 0 1 0
9 1 0 1 0
10 1 0 1 0
11 1 0 0 1
12 1 0 0 1
13 1 0 0 1
14 1 0 0 1
15 1 0 0 1
16 1 0 0 0
17 1 0 0 0
18 1 0 0 0
19 1 0 0 0
20 1 0 0 0
attr(,"assign")
[1] 0 1 1 1
attr(,"contrasts")
attr(,"contrasts")$power
[1] "contr.treatment"summary(fit1_220)
Call:
lm(formula = rate ~ power, data = etching_df)
Residuals:
Min 1Q Median 3Q Max
-25.4 -13.0 2.8 13.2 25.6
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 707.000 8.169 86.542 < 2e-16 ***
power160 -155.800 11.553 -13.485 3.73e-10 ***
power180 -119.600 11.553 -10.352 1.69e-08 ***
power200 -81.600 11.553 -7.063 2.68e-06 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 18.27 on 16 degrees of freedom
Multiple R-squared: 0.9261, Adjusted R-squared: 0.9122
F-statistic: 66.8 on 3 and 16 DF, p-value: 2.883e-09ANOVA
anova(fit1_220)Since our ANOVA result was significant, we perform post-hoc tests to determine exactly which pairs of power levels have different means.
The Fisher’s Least Significant Difference (LSD) test does not control the family-wise error rate but is more powerful.
with(etching_df, pairwise.t.test(rate, power, p.adj = "none"))
Pairwise comparisons using t tests with pooled SD
data: rate and power
220 160 180
160 3.7e-10 - -
180 1.7e-08 0.0064 -
200 2.7e-06 8.4e-06 0.0046
P value adjustment method: none Tukey’s Honest Significant Difference (HSD) controls the family-wise error rate, adjusting p-values to account for multiple comparisons.
fit.aov <- aov(rate ~ power, data = etching_df)
TukeyHSD(fit.aov) Tukey multiple comparisons of means
95% family-wise confidence level
Fit: aov(formula = rate ~ power, data = etching_df)
$power
diff lwr upr p adj
160-220 -155.8 -188.854376 -122.74562 0.0000000
180-220 -119.6 -152.654376 -86.54562 0.0000001
200-220 -81.6 -114.654376 -48.54562 0.0000146
180-160 36.2 3.145624 69.25438 0.0294279
200-160 74.2 41.145624 107.25438 0.0000455
200-180 38.0 4.945624 71.05438 0.0215995The validity of our ANOVA results depends on three key assumptions about the model’s residuals. We use diagnostic plots to check them.
r <- rstudent(fit)

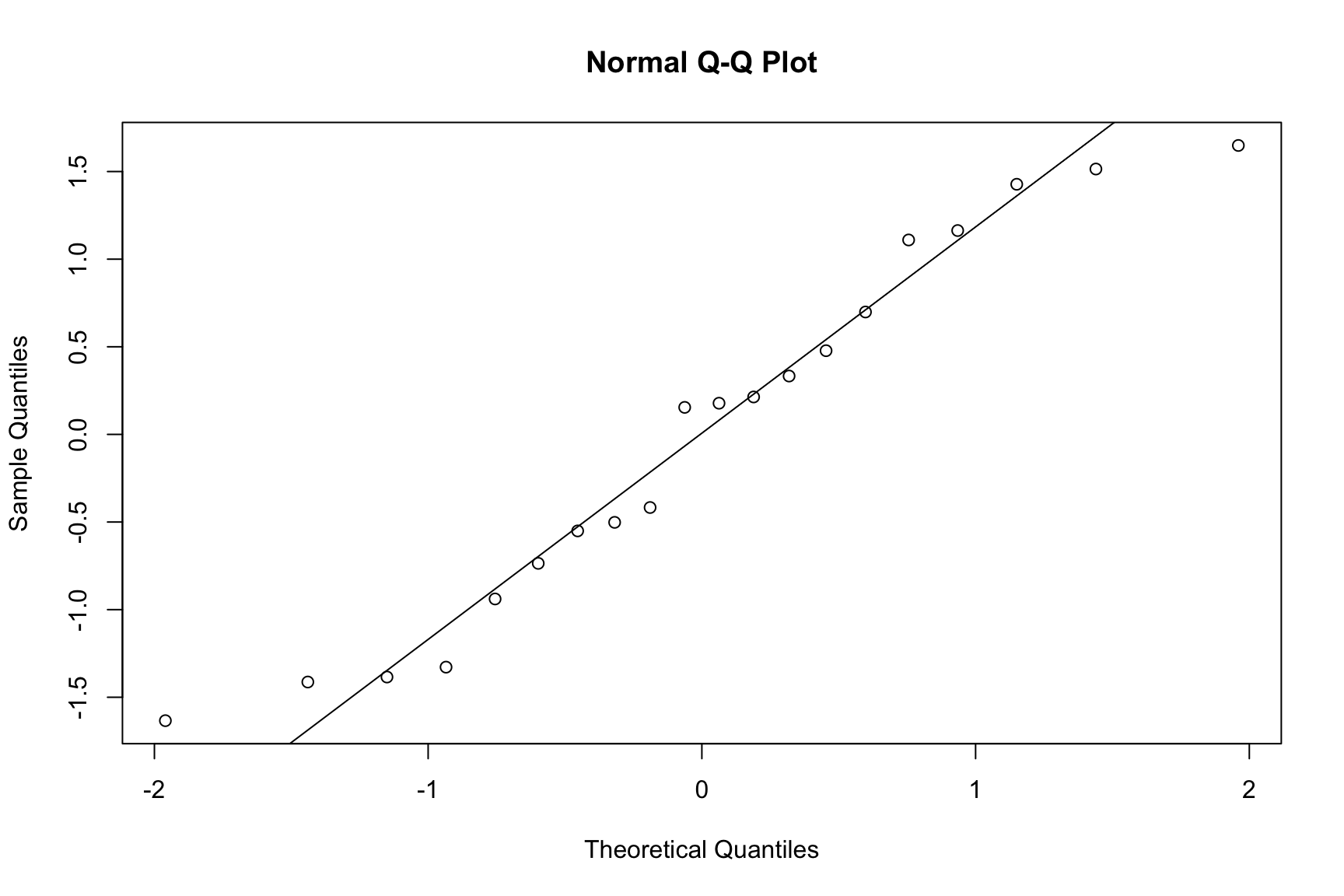

fitted <- fitted.values(fit)A Normal Q-Q plot is used to check if the residuals are normally distributed. The points should fall closely along the straight diagonal line.
qqnorm(r)
qqline(r)

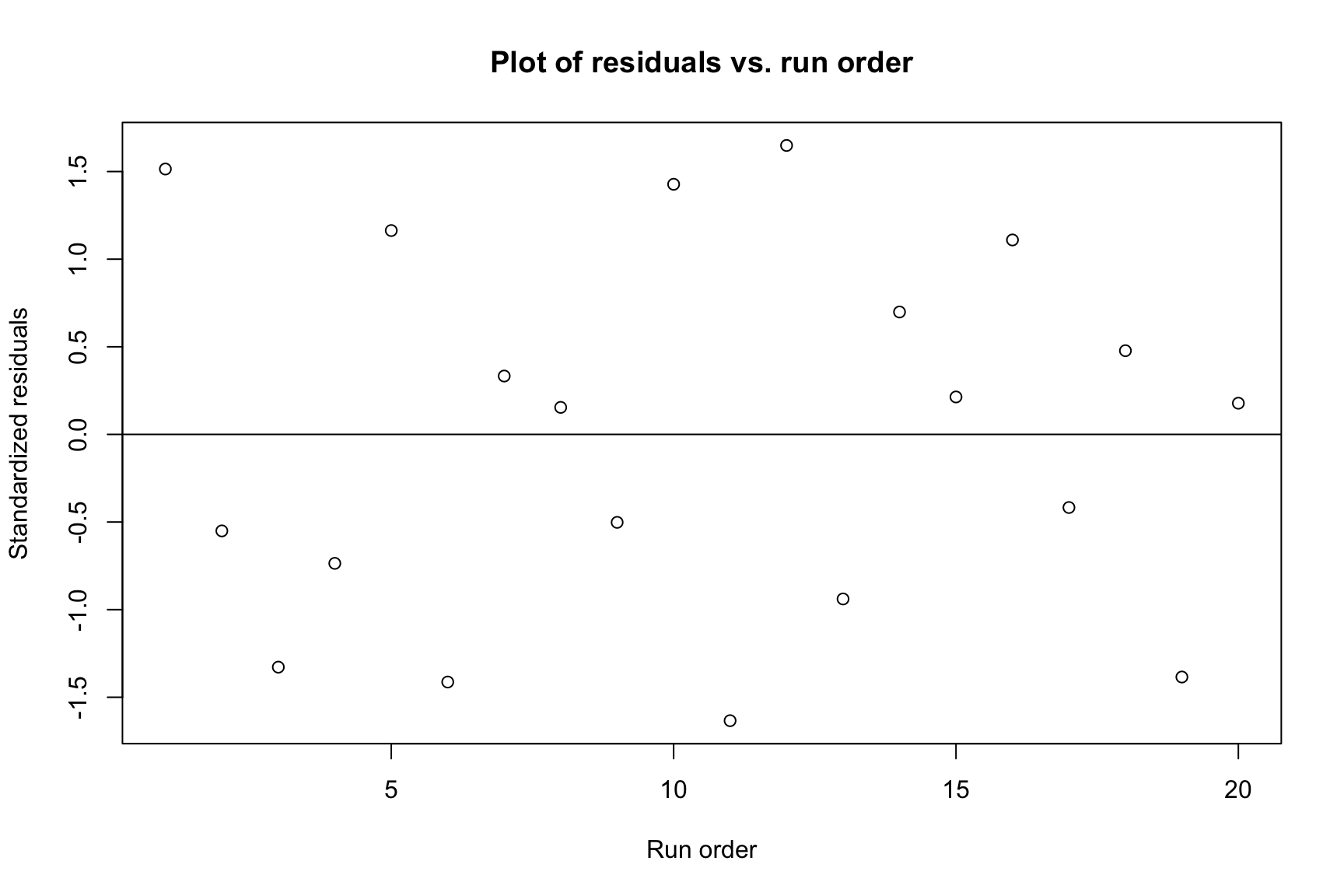

A plot of residuals versus run order helps check for independence. We look for random scatter around the zero line.
plot(r, ylab = "Standardized residuals", xlab = "Run order",
main = "Plot of residuals vs. run order")
abline(h = 0)

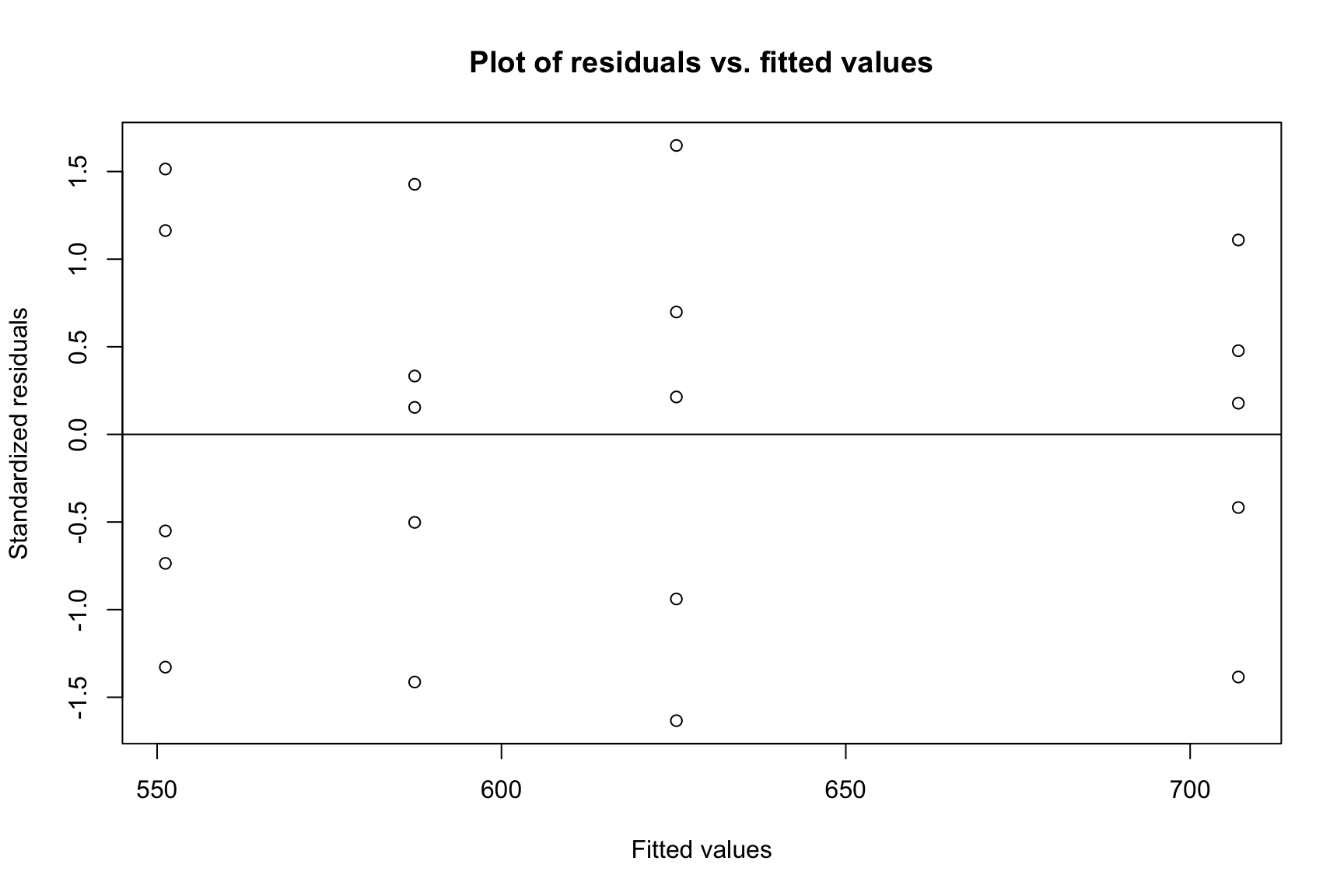

A plot of residuals versus fitted values helps check for constant variance. The spread of residuals should be roughly constant across all fitted values.
plot(fitted, r, ylab = "Standardized residuals",
xlab = "Fitted values", main = "Plot of residuals vs. fitted values")
abline(h = 0)
The ANOVA framework also handles unbalanced designs. We again start by creating a data frame.
## Create the data frame
bricks_df <- data.frame(
density = c(21.8, 21.9, 21.7, 21.6, 21.7,
21.7, 21.4, 21.5, 21.4,
21.9, 21.8, 21.8, 21.6, 21.5,
21.9, 21.7, 21.8, 21.4),
temperature = factor(c(rep(100, 5), rep(125, 4), rep(150, 5), rep(175, 4)))
)
bricks_df## Fit the model and get the ANOVA table
fit2 <- lm(density ~ temperature, data = bricks_df)
summary(fit2)
Call:
lm(formula = density ~ temperature, data = bricks_df)
Residuals:
Min 1Q Median 3Q Max
-0.300 -0.100 0.000 0.095 0.200
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 21.74000 0.07171 303.150 <2e-16 ***
temperature125 -0.24000 0.10757 -2.231 0.0425 *
temperature150 -0.02000 0.10142 -0.197 0.8465
temperature175 -0.04000 0.10757 -0.372 0.7156
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 0.1604 on 14 degrees of freedom
Multiple R-squared: 0.3025, Adjusted R-squared: 0.153
F-statistic: 2.024 on 3 and 14 DF, p-value: 0.1569anova(fit2)In this case, the large p-value (0.133) indicates that there is no statistically significant evidence that firing temperature affects brick density.
This section analyzes a Randomized Complete Block Design (RCBD), used to control for a known source of variability (here, “batches of resin,” treated as blocks).
We structure the data in a data.frame to identify the response, treatment (pressure), and block (batch) for each observation.
## Define data vectors
strength <- c(90.3, 89.2, 98.2, 93.9, 87.4, 97.9,
92.5, 89.5, 90.6, 94.7, 87.0, 95.8,
85.5, 90.8, 89.6, 86.2, 88.0, 93.4,
82.5, 89.5, 85.6, 87.4, 78.9, 90.7)
pressure_levels <- rep(c(8500, 8700, 8900, 9100), each = 6)
batch_levels <- rep(1:6, 4)
## Create the data frame
graft_df <- data.frame(
strength = strength,
pressure = factor(pressure_levels),
batch = factor(batch_levels)
)

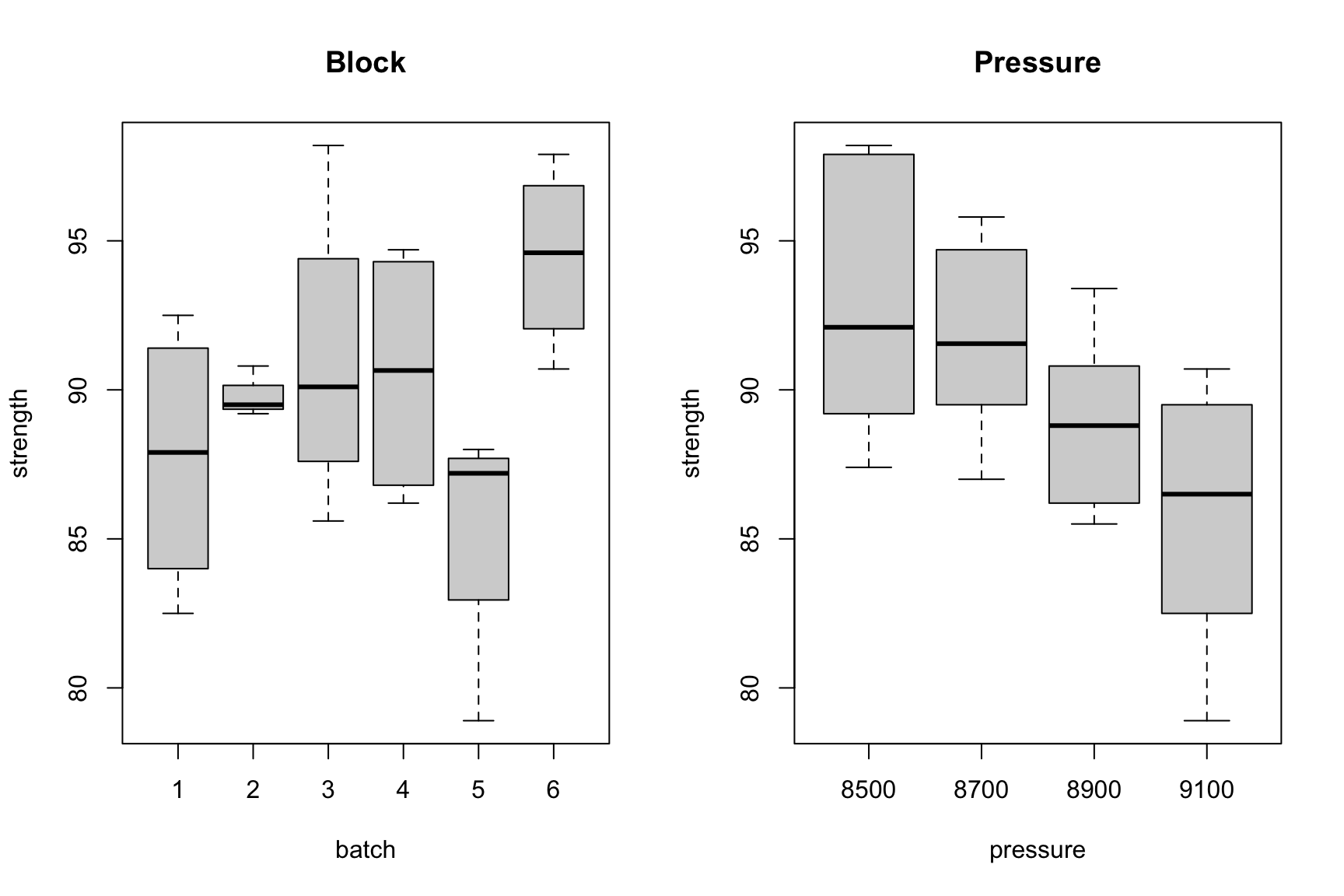

graft_dfVisualize the Block and Treatment Effects
par (mfrow = c(1,2))
#boxplot
plot(strength ~ batch, data=graft_df , main = "Block")
plot(strength ~ pressure, data=graft_df , main = "Pressure")

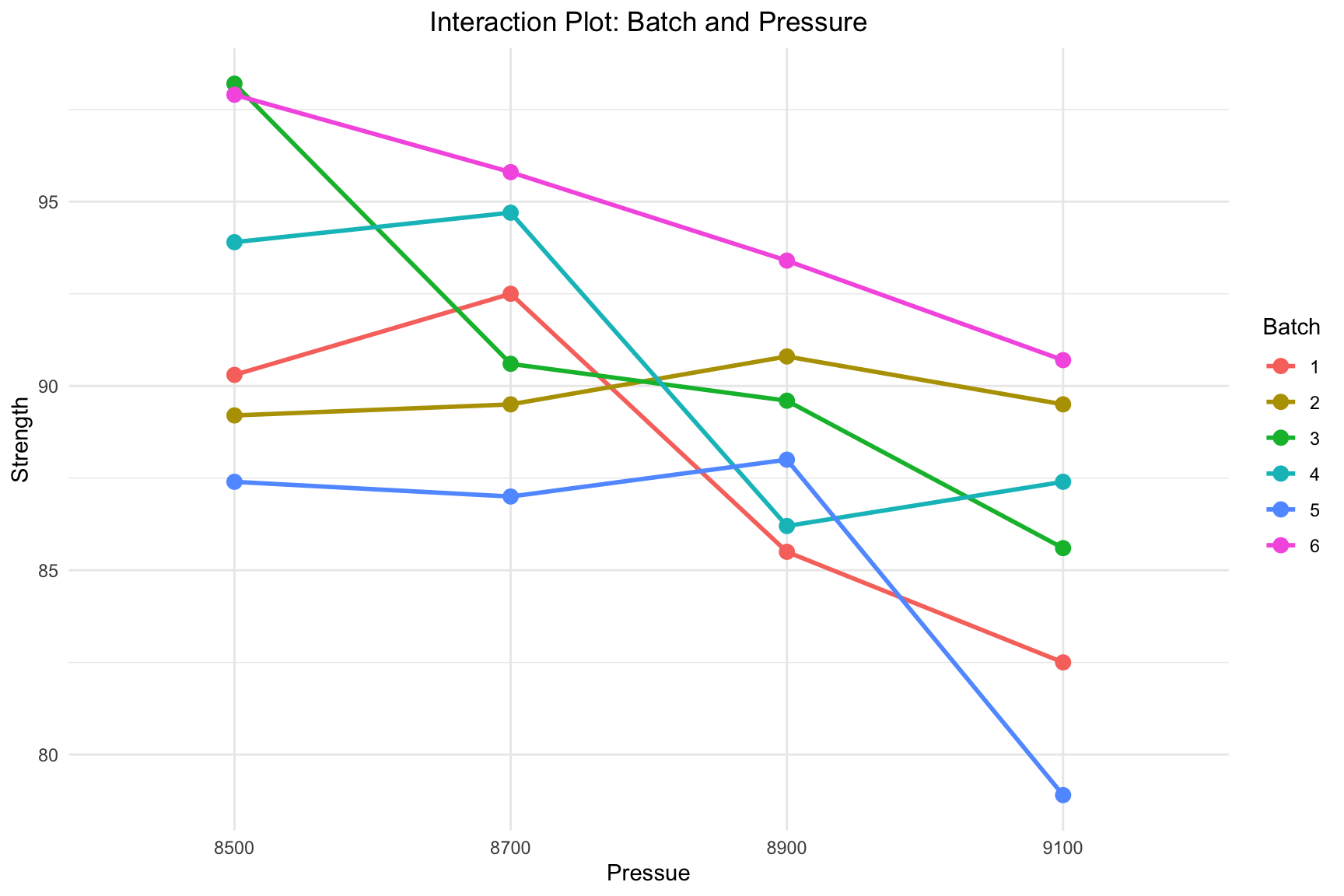

Interaction Plots
ggplot(graft_df, aes(x = pressure, y = strength, group = batch, color = batch)) +
stat_summary(fun = mean, geom = "line", size = 1) +
stat_summary(fun = mean, geom = "point", size = 3) +
labs(
title = "Interaction Plot: Batch and Pressure",
x = "Pressue",
y = "Strength",
color = "Batch"
) +
theme_minimal() +
theme(plot.title = element_text(hjust = 0.5))
The model strength ~ pressure + batch partitions the total variance into treatment, block, and error components. Our primary interest is in the significance of the pressure factor.
rcbd.fit1 <- lm(strength ~ pressure + batch, data = graft_df)
summary(rcbd.fit1)
Call:
lm(formula = strength ~ pressure + batch, data = graft_df)
Residuals:
Min 1Q Median 3Q Max
-3.5708 -1.3333 -0.3167 1.1417 4.1792
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 90.721 1.657 54.735 < 2e-16 ***
pressure8700 -1.133 1.563 -0.725 0.479457
pressure8900 -3.900 1.563 -2.496 0.024713 *
pressure9100 -7.050 1.563 -4.512 0.000414 ***
batch2 2.050 1.914 1.071 0.301043
batch3 3.300 1.914 1.724 0.105201
batch4 2.850 1.914 1.489 0.157175
batch5 -2.375 1.914 -1.241 0.233684
batch6 6.750 1.914 3.527 0.003050 **
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 2.707 on 15 degrees of freedom
Multiple R-squared: 0.7712, Adjusted R-squared: 0.6492
F-statistic: 6.321 on 8 and 15 DF, p-value: 0.00113anova(rcbd.fit1)The small p-value for pressure (0.0019) provides strong evidence that extrusion pressure significantly affects graft strength after accounting for batch differences.

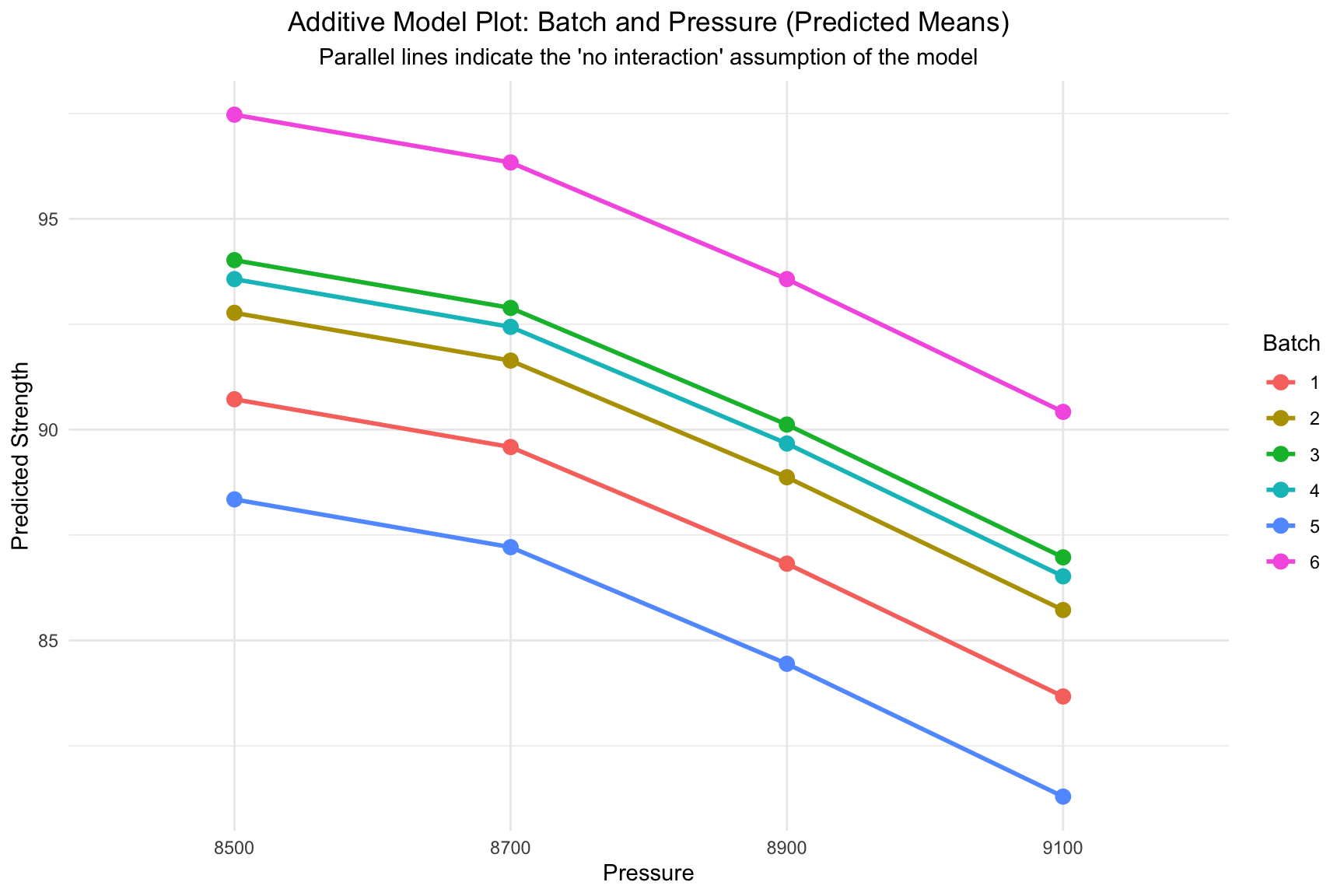

The plot below visualizes the predictions generated by the fitted additive model (strength ~ pressure + batch). Notice that the lines are perfectly parallel, which is the graphical representation of the model’s assumption that there is no interaction between the two factors.
# 1. Create a data frame for plotting predictions
pred_df <- graft_df
# 2. Make predictions using the fitted additive model
pred_df$predicted_strength <- predict(rcbd.fit1, newdata = pred_df)
# 3. Plot the predicted values
# Plotting the predicted means will show the parallel lines.
ggplot(pred_df, aes(x = pressure, y = predicted_strength, group = batch, color = batch)) +
# Use stat_summary to plot the predicted means for each pressure/batch combination
stat_summary(fun = mean, geom = "line", size = 1) +
stat_summary(fun = mean, geom = "point", size = 3) +
labs(
title = "Additive Model Plot: Batch and Pressure (Predicted Means)",
subtitle = "Parallel lines indicate the 'no interaction' assumption of the model",
x = "Pressure",
y = "Predicted Strength",
color = "Batch"
) +
theme_minimal() +
theme(plot.title = element_text(hjust = 0.5),
plot.subtitle = element_text(hjust = 0.5))
The assumptions for an RCBD are the same as for a CRD. We perform the same diagnostic checks.
rcbd.r1 <- rstudent(rcbd.fit1)
rcbd.fitted1 <- fitted.values(rcbd.fit1)

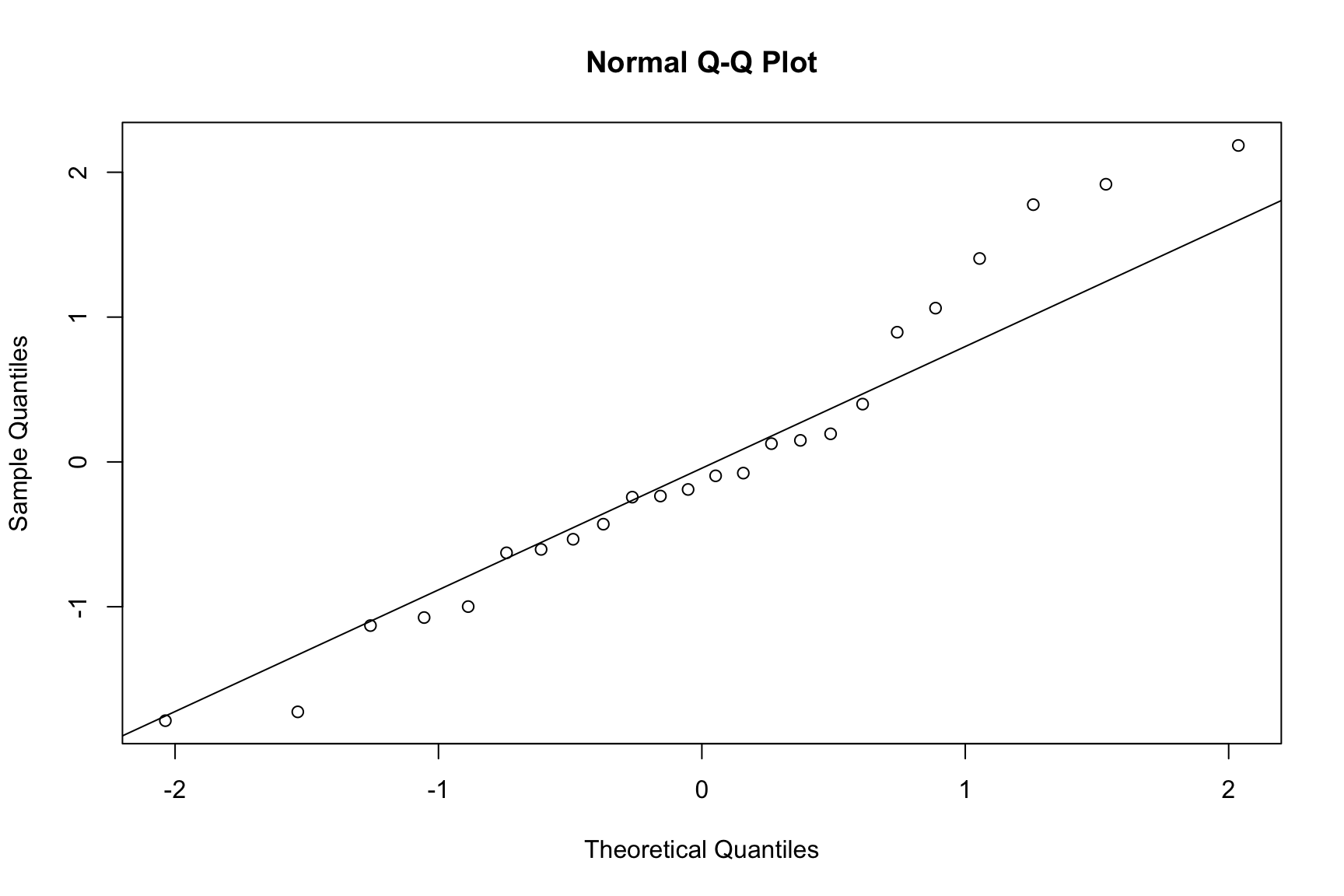

qqnorm(rcbd.r1, main = "Normal Q-Q Plot")
qqline(rcbd.r1)

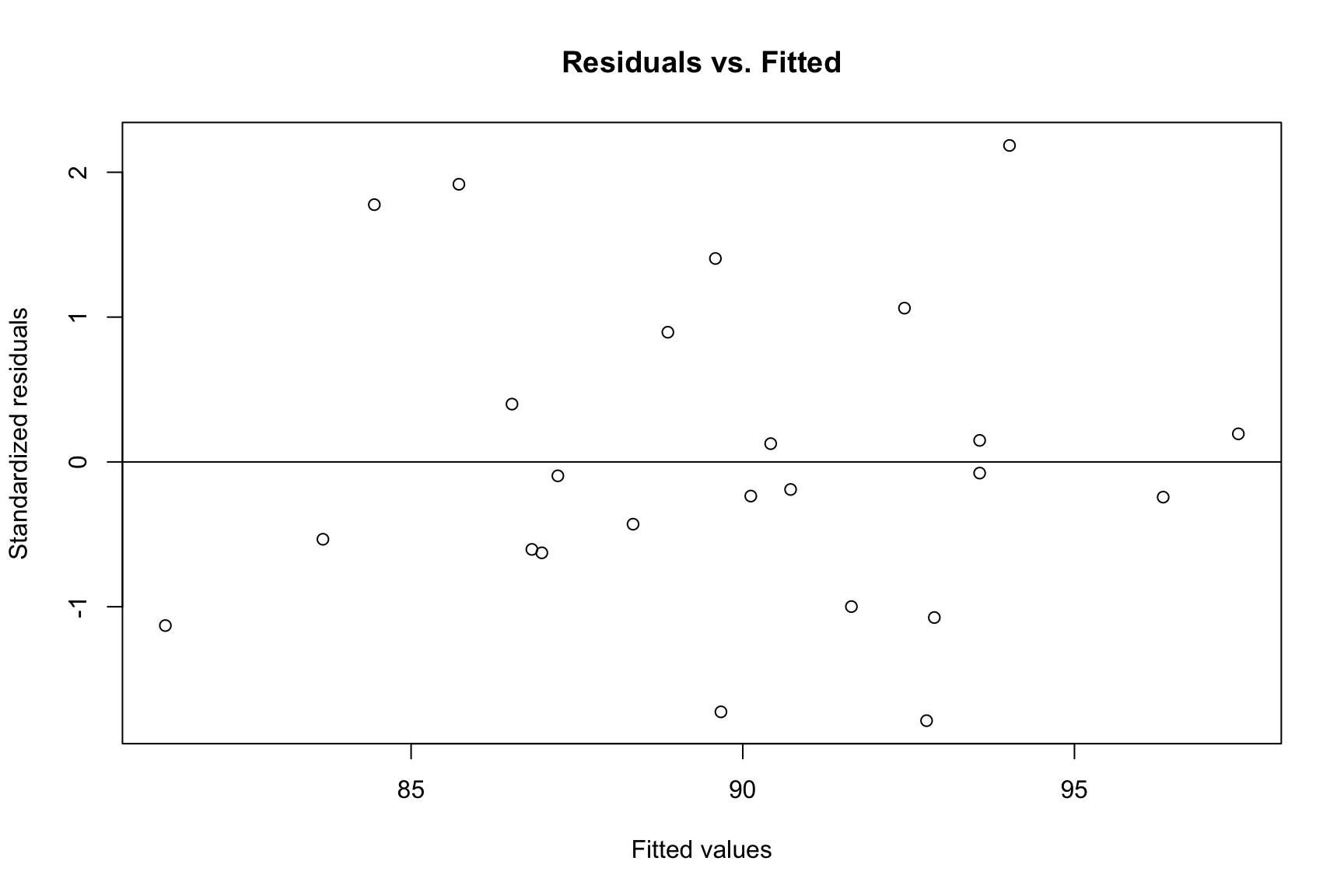

plot(rcbd.fitted1, rcbd.r1, ylab = "Standardized residuals",
xlab = "Fitted values", main = "Residuals vs. Fitted")
abline(h = 0)

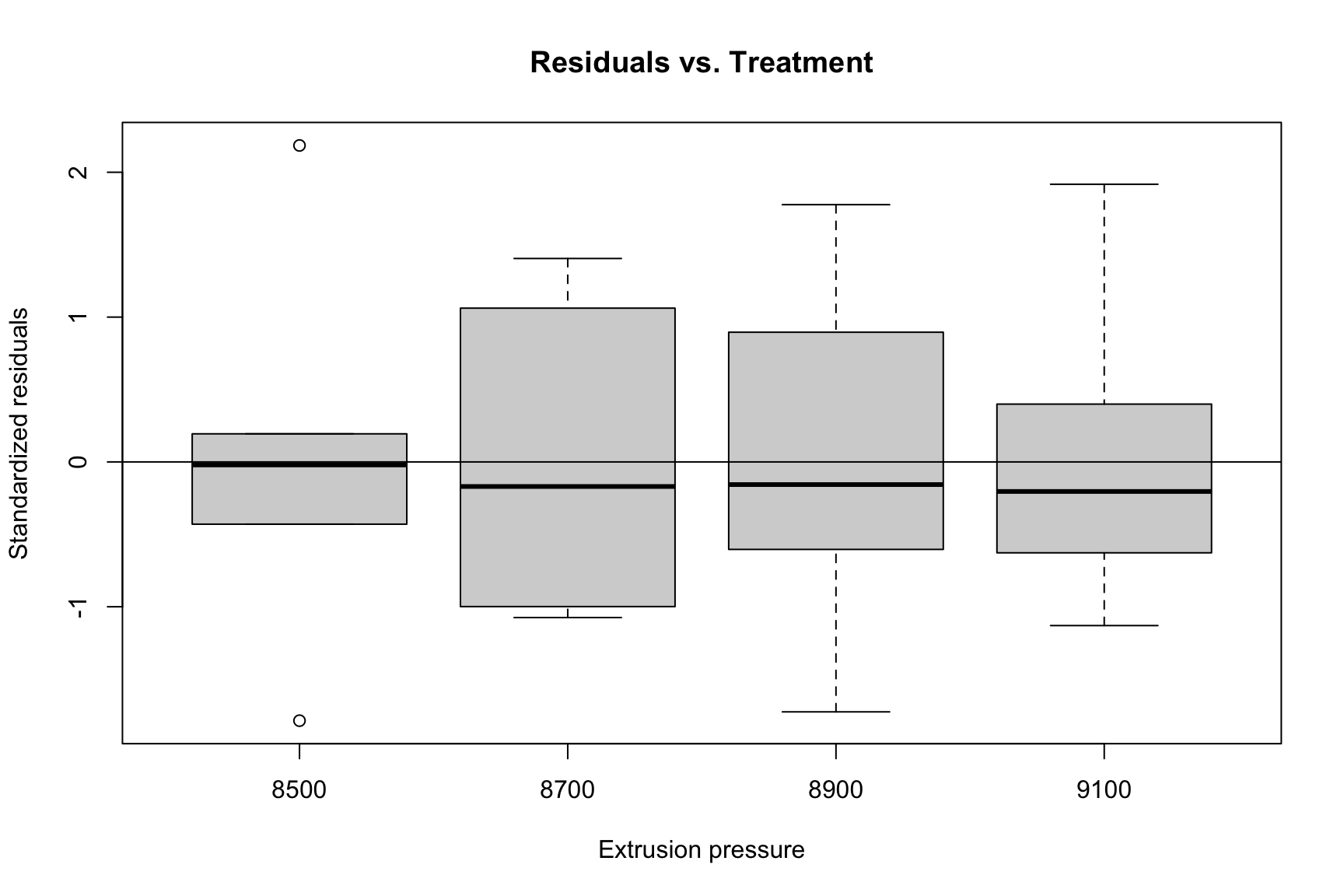

plot(graft_df$pressure, rcbd.r1, ylab = "Standardized residuals",
xlab = "Extrusion pressure", main = "Residuals vs. Treatment")
abline(h = 0)

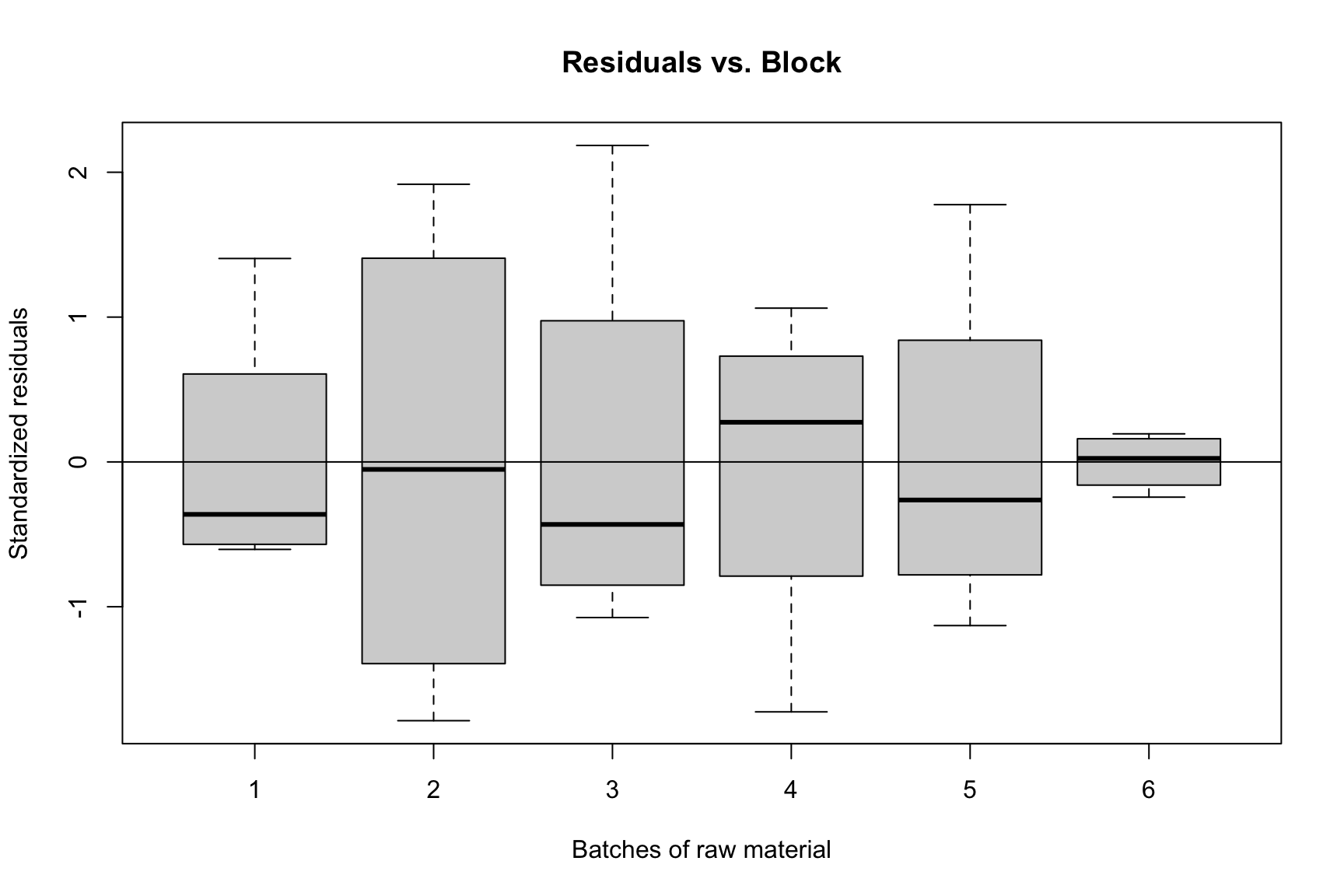

plot(graft_df$batch, rcbd.r1, ylab = "Standardized residuals",
xlab = "Batches of raw material", main = "Residuals vs. Block")
abline(h = 0)
Again, since the treatment factor (pressure) is significant, we perform post-hoc tests.
Tukey’s HSD compares all pairs of treatment levels while controlling the family-wise error rate.
rcbd.aov <- aov(strength ~ pressure + batch, data = graft_df)
TukeyHSD(rcbd.aov, which = "pressure") Tukey multiple comparisons of means
95% family-wise confidence level
Fit: aov(formula = strength ~ pressure + batch, data = graft_df)
$pressure
diff lwr upr p adj
8700-8500 -1.133333 -5.637161 3.370495 0.8854831
8900-8500 -3.900000 -8.403828 0.603828 0.1013084
9100-8500 -7.050000 -11.553828 -2.546172 0.0020883
8900-8700 -2.766667 -7.270495 1.737161 0.3245644
9100-8700 -5.916667 -10.420495 -1.412839 0.0086667
9100-8900 -3.150000 -7.653828 1.353828 0.2257674The LSD.test() function from the agricolae package correctly handles the error structure of an RCBD.
## install.packages("agricolae")
library(agricolae)
out <- LSD.test(rcbd.fit1, trt = "pressure", p.adj = "none", group = FALSE)
print(out$comparison) difference pvalue signif. LCL UCL
8500 - 8700 1.133333 0.4795 -2.1974047 4.464071
8500 - 8900 3.900000 0.0247 * 0.5692620 7.230738
8500 - 9100 7.050000 0.0004 *** 3.7192620 10.380738
8700 - 8900 2.766667 0.0970 . -0.5640714 6.097405
8700 - 9100 5.916667 0.0018 ** 2.5859286 9.247405
8900 - 9100 3.150000 0.0621 . -0.1807380 6.480738
